Kyoto, Japan -- Structural metals used in engineering projects are expected to have both high strength and high ductility : an ability to withstand heavy loads and deform before failure. Achieving both of these properties at the same time, however, is challenging.
An important measure of ductility is uniform elongation , or the amount of deformation a metal can sustain before it concentrates in one small area, resulting in a fracture. Some metals become stronger as they are deformed -- a phenomenon known as strain hardening -- so if a material can continue to harden sufficiently during deformation, theoretically uniform stretching can be maintained. However, a metal's effectiveness usually decreases as deformation continues. While some advanced metals obtain additional strain hardening from deformation-twinning and martensitic transformation , these processes tend to compete with each other, so metals are commonly designed to rely predominantly on just one or the other.
A team of researchers at Kyoto University wondered if both mechanisms could be activated in the same material at different stages of deformation, and hypothesized this could cause strains to harden sequentially rather than compete with each other. They proposed a strategy in which different deformation mechanisms are activated in sequence, with each providing additional strain hardening as the previous step becomes less effective.
"In the field of high-strength metals, durable materials are no longer unusual, yet the elongation of metallic materials has generally remained below about 60 to 70 percent," says corresponding author Si Gao. "I wanted to know whether metals could be pushed beyond this apparent limit."

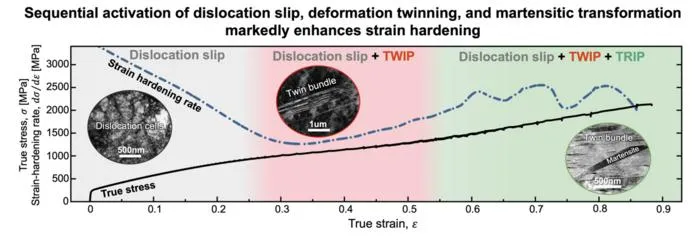

The team experimented with this concept in an actual sample of Fe-Ni-C steel, carefully controlling the alloy composition. In particular, the researchers increased the carbon content to delay the onset of martensitic transformation, which allowed deformation twinning to activate first at intermediate strains while postponing martensitic transformation until strains were more intense. This enabled the two mechanisms to operate sequentially rather than compete from the beginning.
Ultimately, the researchers succeeded in developing an Fe-4Ni-0.6C steel with the exceptional uniform elongation of nearly 140 percent. This super ductility is a result of the mechanisms continuously providing strain hardening, which delays strain localization over a large strain range.
This study suggests that metallic materials have a much greater intrinsic potential for uniform deformation than previously believed, and provides a new strategy for overcoming the long-standing tradeoff between strength and ductility. Future applications are likely to include buildings, vehicles, aircraft, and other load-bearing structures that require both strength and ductility.
"It's important to not make every strengthening mechanism operate as strongly as possible at the same time," says Gao. "We found that very large uniform elongation can be obtained when the material activates the next mechanism at about the stage when the previous one is becoming insufficient, which gives us a new way to think about alloy design."
###
The paper "Super ductile steel via sequentially activating multiple strengthening mechanisms" appeared on 1 September 2026 in Materials Today , with doi: 10.1016/j.mattod.2026.103497
About Kyoto University
Kyoto University is one of Japan and Asia's premier research institutions, founded in 1897 and responsible for producing numerous Nobel laureates and winners of other prestigious international prizes. A broad curriculum across the arts and sciences at undergraduate and graduate levels complements several research centers, facilities, and offices around Japan and the world. For more information, please see: http://www.kyoto-u.ac.jp/en
Materials Today
Experimental study
Not applicable
Super ductile steel via sequentially activating multiple strengthening mechanisms
1-Sep-2026
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
