A standard quartz crystal microbalance (QCM) has been turned into a much more sensitive mass sensor by using a normally avoided physical behavior: non-linear resonance. Instead of relying only on the small frequency shifts used in conventional sensing, the new method tracks an abrupt amplitude drop that appears when the device is driven into a non-linear regime. With this strategy, the system detected single micro/nanoparticles and protein binding events, reaching a detection limit of about 100 femtograms. The advance offers a simple route to ultrasensitive mass detection without extra surface coating, structural redesign, or complex nanofabrication.
Detecting extremely small masses is important for environmental monitoring, biosensing, and medical diagnostics, but existing platforms still face trade-offs. Nanoelectromechanical systems (NEMS) can achieve very high sensitivity, yet they often suffer from position dependence, limited reproducibility, and environmental instability. Conventional quartz crystal microbalance (QCM) devices are more robust and widely used, but their sensitivity is usually restricted to higher mass ranges. Many attempts to improve them depend on surface functionalization, molecular recognition layers, or nanomaterial integration, which can add cost, fabrication difficulty, and long-term stability concerns. Based on these challenges, there is a need to carry out in-depth research on sensing strategies that exploit the intrinsic dynamic behavior of QCM devices.
Researchers from Ewha Womans University in Seoul, Republic of Korea, together with collaborators from Korea University and the Kavli Institute of Nanoscience Delft in the Netherlands, reported (DOI:10.1038/s41378-026-01217-0) in Microsystems & Nanoengineering in 2026 that non-linear resonance can greatly expand the sensing power of a commercial QCM. By operating the device at a driving condition that produces a sharp amplitude-drop response, the team demonstrated single micro/nanoparticle detection and protein–antibody sensing, with a reported detection limit of about 100 fg.

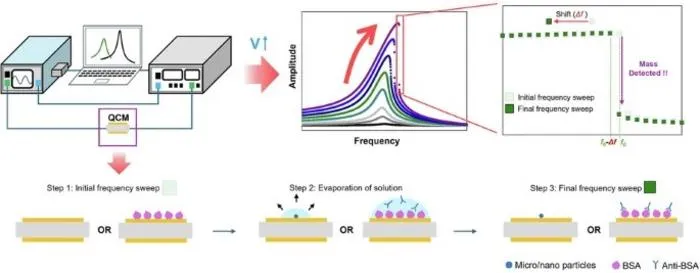

The study centered on a simple but powerful shift in how QCM is used. At low driving voltages, the sensor behaved in the expected linear regime, showing symmetric resonance curves. When the voltage increased above about 3 V, the response became asymmetric, and above 5 V an abrupt amplitude drop appeared. The researchers identified 6 V as the most stable non-linear operating point, because it produced a clear, repeatable drop with strong contrast. Using this condition, they compared linear and non-linear sensing with silica micro/nanoparticles and bovine serum albumin (BSA). In the linear regime, small mass changes were hard to resolve, especially below the picogram scale. In the non-linear regime, the sensor gave clearer shifts at low masses. The team then measured a single 1 μm particle and observed a reproducible 1 Hz shift. They also adsorbed BSA onto the gold surface and detected anti-BSA, observing a 1 Hz shift corresponding to about 100 fg after antibody binding. Importantly, this 1 Hz value reflects the resolution of the measurement electronics used in the experiment rather than the intrinsic of the non-linear QCM platform itself, which is expected to be finer. The work further showed device reusability and demonstrated that the sensing concept could remain observable even in liquid conditions, where damping is usually a major obstacle.
“This is the kind of sensor advance that changes the story by changing the readout,” the study suggests in essence. Rather than redesigning the chip itself, the work uses non-linear physics to make a familiar platform respond more sharply to tiny mass loading events. That matters because it combines three features that rarely arrive together: femtogram-level sensitivity, reproducible single-particle detection, and a straightforward experimental setup built on a commercial device. In news terms, the message is clear: higher sensitivity may not always require a more complicated sensor.
The implications are broad. Because the platform works without added surface functionalization or device modification, it may offer a more practical route toward real-world ultra-sensitive sensing. The paper points to possible uses in monitoring fine dust and nanoplastics, studying protein interactions, and building future biomarker detection systems. The authors also note that the non-linear amplitude-drop scheme could support event-based sensing with fixed-frequency operation, which may be faster than conventional sweep-based approaches. With further integration into microfluidic chips and array-based designs, QCM sensing could move toward real-time, continuous-flow biological analysis with much higher sensitivity than traditional formats.
###
References
DOI
Original Source URL
https://doi.org/10.1038/s41378-026-01217-0
Funding information
This research was supported by National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT and MOE) (No. RS-2025-16063688), the Basic Research Program (NRF-2018R1A6A1A03025340, NRF-2021R1A6A1A10039823) through the National Research Foundation of Korea (NRF), IITP (Institute of Information & Communications Technology Planning & Evaluation)-ITRC(Information Technology Research Center) grant (IITP-2025-RS-2024-00437191) funded by the Korea government(Ministry of Science and ICT), and by Korea Research Institute for defense Technology planning and advancement (KRIT) - Grant funded by Defense Acquisition Program Administration (DAPA) (KRIT-CT-23-031).
About Microsystems & Nanoengineering
Microsystems & Nanoengineering is an online-only, open access international journal devoted to publishing original research results and reviews on all aspects of Micro and Nano Electro Mechanical Systems from fundamental to applied research. The journal is published by Springer Nature in partnership with the Aerospace Information Research Institute, Chinese Academy of Sciences, supported by the State Key Laboratory of Transducer Technology.
Microsystems & Nanoengineering
Not applicable
Precise detection of single particles and bio-sensing applications on quartz crystal microbalance using non-linear resonance behavior
18-Mar-2026
The authors declare that they have no competing interests
