Tsukuba, Japan—In a collaborative work in the Dynacom framework (French Japanese Laboratory), recent studies have highlighted that materials composed of layered tubes, which are atomically thick and classified as low-dimensional materials, exhibit new properties. Although the static properties of these structures, such as electrical conduction, are well documented, their dynamic properties, including electron transfer between layers and atomic motion triggered by light exposure, have received less attention.

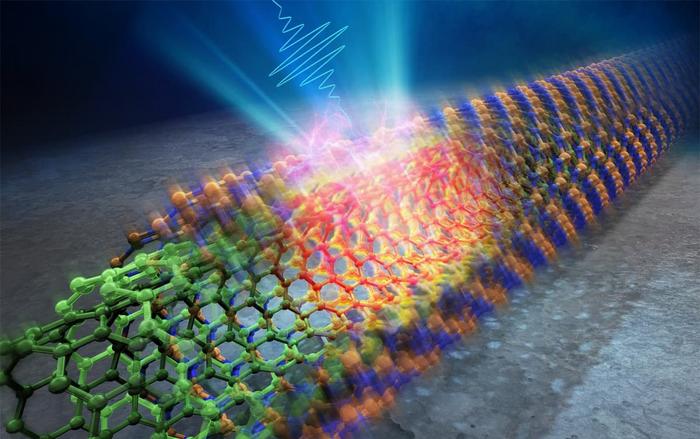

In this study, researchers constructed nested cylindrical structures by wrapping carbon nanotubes (CNTs) in boron nitride nanotubes. They then examined the motion of electrons and atoms induced by ultrashort light pulses on a one-dimensional (1D) material. Electron motion was monitored using broadband ultrafast optical spectroscopy, which captures instantaneous changes in molecular and electronic structures due to light irradiation with a precision of ten trillionths of a second (10 −13 s). Atomic motion was observed through ultrafast time-resolved electron diffraction, which similarly achieved monitoring of structural dynamics with ten-trillionth-of-a-second accuracy.
The study revealed that when different types of low-dimensional materials are layered, a pathway or channel forms, allowing electrons to escape from specific subparts of the material. Additionally, it was found that electrons excited in the CNTs by light exposure could transfer into the BNNTs via these electronic channels, where their energy is rapidly converted into thermal energy, facilitating extremely fast thermal conversion.
This research has uncovered a new physical phenomenon at the interface between two dissimilar materials, offering not only ultrafast thermal energy transport but also potential applications in the development of ultrafast optical devices and the rapid manipulation of electrons and holes generated by light.
###
This work was supported by JSPS Kakenhi Grants-in-Aid [Nos. JP18H05208 (S.K.), JP22KK0225 (M.H.) and JP23H01101 (M.H.)] and the Japan Science Technology Agent (JST) FOREST Program [No. JPMJFR211V (M.H.)]. R.B. acknowledges Agence Nationale de la Recherche (ANR) for funding undergrant, ANR-21-CE30-0011-01 CRITICLAS.
Title of original paper:
Photoinduced dynamics during electronic transfer from narrow to wide bandgap layers in one-dimensional heterostructured materials
Journal:
Nature Communications
DOI:
10.1038/s41467-024-48880-3
Associate Professor HADA, Masaki
Institute of Pure and Applied Sciences / Tsukuba Research Center for Energy Materials Science (TREMS), University of Tsukuba
Assistant Professor SUZUKI, Hiroo
Faculty of Environmental, Life, Natural Science and Technology, Okayama University
Associate Professor OHMURA, Satoshi
Faculty of Engineering, Hiroshima Institute of Technology
Associate Professor Roman Bertoni
Univ Rennes, CNRS, IPR (Institut de Physique de Rennes)
Institute of Pure and Applied Sciences
Tsukuba Research Center for Energy Materials Science (TREMS)
Nature Communications
Photoinduced dynamics during electronic transfer from narrow to wide bandgap layers in one-dimensional heterostructured materials
30-May-2024
