Freestanding oxide membranes are emerging as a promising platform for next-generation flexible electronics, sensors, and multifunctional oxide devices. These ultrathin single-crystalline films can be released from rigid substrates and transferred onto different supports, combining the rich physical functionalities of complex oxides with structural flexibility and heterogeneous integration capability.
However, during membrane release and transfer processes, local structural imperfections such as cracks, wrinkles, and bulges can easily form. Although these defects may be difficult to identify under low-magnification optical microscopy, they can strongly affect local electrical transport, strain states, and device reliability. Efficiently detecting such hidden imperfections over large areas is therefore important for the quality evaluation and reliable fabrication of freestanding oxide-based devices.
In a collaborative study, researchers from the groups of Prof. Lingfei Wang, Prof. Wenbin Wu, and Prof. Dazhi Hou at the University of Science and Technology of China developed a lock-in thermography (LIT)-based method for rapid characterization of structural imperfections in freestanding oxide membranes. The study, titled “High-throughput characterization of local structural imperfections in freestanding oxide membranes by lock-in thermography,” was published in Science Bulletin .

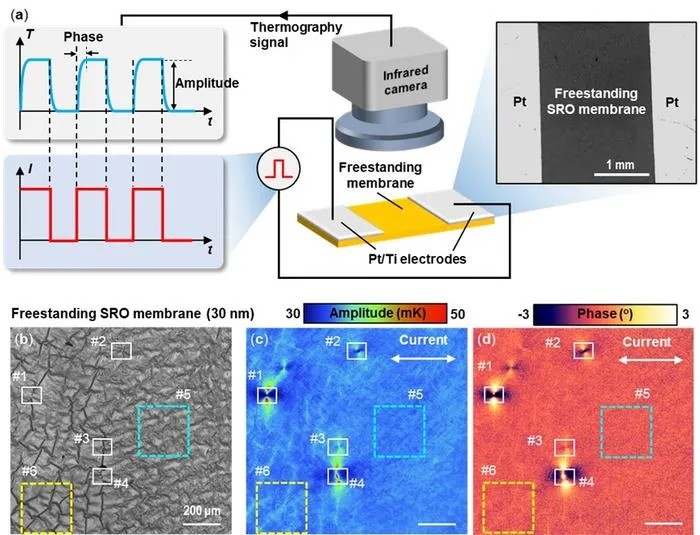

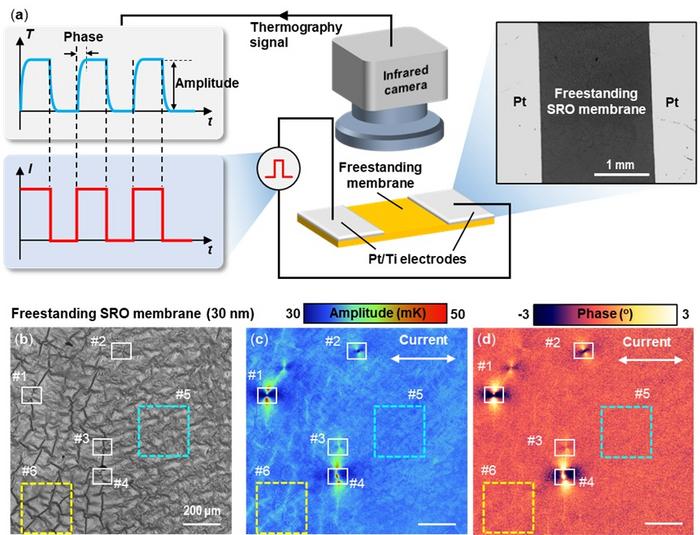

The method works by injecting a periodic square-wave current into a conductive freestanding oxide membrane while an infrared camera records the resulting temperature oscillations. When the current passes near cracks or wrinkles, the local current distribution and Joule heating behavior are modified, producing characteristic thermal patterns. In this way, structural imperfections that are difficult to resolve directly can be converted into visible thermal signatures.
The researchers studied freestanding conductive oxide membranes including SrRuO 3 La 2/3 Sr 1/3 MnO 3 , and YBa 2 Cu 3 O 7− δ . They found that different types of defects produced distinct thermal responses. Microcracks generated characteristic butterfly-shaped thermal anomalies, which arise from current blocking and current crowding near the crack tips. In contrast, wrinkles produced stripe-like thermal signals associated with strain-modulated local resistivity.
By combining LIT amplitude and phase imaging with finite-element simulations, the team further correlated these thermal features with key structural parameters, including crack length, crack orientation, and wrinkle height modulation. The results show that LIT can detect crack-related thermal anomalies even when the physical crack openings are difficult to clearly resolve using conventional optical microscopy.
Compared with conventional microscopy-based inspection methods, the LIT approach enables rapid wide-field imaging over millimeter-scale areas using relatively low-magnification infrared optics. After electrode preparation, a typical millimeter-scale region can be imaged within tens of seconds, substantially improving the efficiency of defect screening in freestanding oxide membranes.
The researchers also explored the possibility of extending this approach to insulating oxide membranes. By depositing an ultrathin conductive silver capping layer on insulating SrTiO 3 membranes, they observed crack-related thermal anomalies through the conductive layer, suggesting a possible route for qualitative defect inspection in insulating membrane systems.
This work provides a rapid and sensitive tool for defect screening, process optimization, and reliability assessment in freestanding oxide membranes. The method may help advance the development of large-area flexible oxide electronics and multifunctional oxide device arrays.
