The intrinsic brittleness, poor thermal shock and oxidation resistance of TMB 2 are the main obstacles that hinder their practical applications. It is well recognized that the macroscopic properties of ultra-high-temperature ceramics (UHTCs) are underpinned by their crystal structure, chemical bonding and microstructure features. Therefore, understanding microscopic information such as the electronic structure and chemical bonding of TMB 2 is essential not only for establishing the structure-property relationships but also for addressing the issue of how to tailor their properties from crystal structure and chemical bonding point of view, which is instructive to promote their practical applications in extreme aerospace environments. Although a number of theoretical works on the electronic structure of TMB 2 have been conducted using first-principles calculations based on density functional theory, direct observation of atom arrangement in TMB 2 was seldom conducted due to the limited resolution of transmission electron microscope. Recent advances in transmission electron microscopy have made it possible to directly observe the arrangement of atom columns in TMB 2 even for light elements such as B. Therefore, it is crucial to verify the crystal structure, chemical bonding and other structure information of TMB 2 through direct experiments.
Recently, a team of material scientists led by Yanchun Zhou from Zhengzhou University, China first reported direct experimental validation on the crystal structure, chemical bonding and magnetic properties of CrB 2 , which is a member of TMB 2 . This work provides a detailed analysis and demonstration of the structure and bonding of CrB 2 by combining theoretical calculations and experimental validations, which is important for understanding the structure-property relationship of CrB 2 and other TMB 2 .
This work was available online on Journal of Advanced Ceramics on August 1, 2025

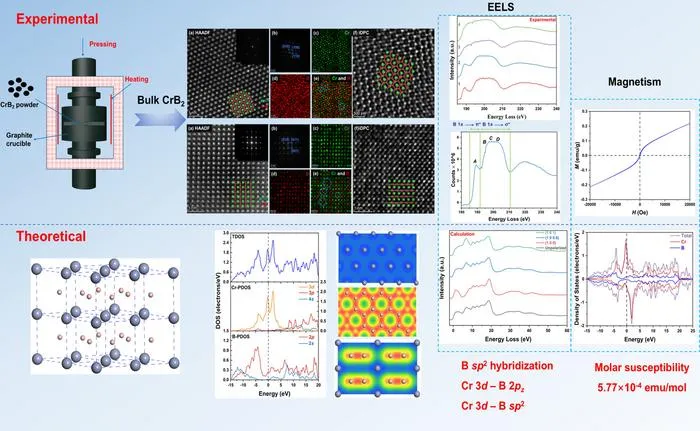

“In this work, a comprehensive study on crystal structure and chemical bonding properties of CrB 2 was conducted using a combinatorial of theoretical calculations and experimental validations. Theoretical calculations were mainly performed using first-principles calculations based on DFT, and the detailed electronic structure and chemical bonding of CrB 2 were systematically analyzed; whereas the experiments were mainly performed using spherical aberration-corrected transmission electron microscopy (AC-TEM) to observe the structure of CrB 2 at the atomic scale equipped with the electron energy loss spectroscopy (EELS), which will give direct evidence of the crystal structure and chemical bonding information. Finally, the hysteresis loop of CrB 2 , which has not been reported to the best knowledge of the authors, was measured and its magnetic properties were analyzed in conjunction with theoretical calculations,” said Yanchun Zhou, professor at School of Materials Science and Engineering at Zhengzhou University (China), a senior expert whose research interests focus on the field of high-temperature ceramic materials.
“Theoretically, three types of chemical bonds, covalent, metallic and ionic, are predicted to exist in CrB 2 . In detail, Cr is bonded to each other in (001) plane with metallic bonds, whereas B is bonded in (002) plane with a graphite-like six-membered ring due to sp 2 hybridization, which originates from the ionic bonding formed by the electron exchange between Cr and B, and forms covalent bonds in the (110) plane by hybridization with Cr 3d ( t 2g and e g ),” said Yanchun Zhou.
“Experimentally, atomic-resolution HADDF and ABF images were obtained by aberration corrected transmission electron microscopy. The atomic-resolution HADDF image as well as the atomic-resolution EDS maps of CrB 2 were analyzed, and it is demonstrated that CrB 2 possesses an AlB 2 -type structure in agreement with that determined from XRD (reciprocal lattice),” said Yanchun Zhou.
“The chemical bonding information of CrB 2 was obtained by the EELS accessory of STEM, and the peaks in the ELNES of B originate mainly from p z and sp 2 hybridization. In addition, the ELNES as well as theoretically calculated chemical bonding information of CrB 2 is compared with that of MgB 2 , which possesses fewer valence electrons. It is pointed out that the appearance of broader peaks in the ELNES of CrB 2 and other TMB 2 can be attributed to the covalent bonding between B and the transition metal, i.e., the resonance arising from the hybridization of B sp 2 and p z with Cr 3 d ( t 2g ) and 3 d ( e g ), which is absent in MgB 2 due to the lack of d orbitals.” said Yanchun Zhou.
“Theoretical calculations show that CrB 2 possesses a net magnetic moment, and the hysteresis loop of CrB 2 has been measured by VSM. The result shows that the molar magnetization of CrB 2 obtained from the hysteresis loop is in general agreed with that measured by Faraday's balance method in previous studies.” said Yanchun Zhou
Although the microstructure and chemical bond information of CrB 2 have been experimentally verified, research on tailoring the intrinsic brittleness and poor oxidation resistance of TMB 2 from a structural perspective still needs to be conducted. Additionally, the impact of CrB 2 's unique antiferromagnetic properties on its electromagnetic wave absorption performance, as well as its role as a component in the electromagnetic wave absorption performance of high-entropy transition metal diborides, still requires further investigation
Other contributors include Shuang Zhang, Huimin Xiang, Cheng Fang, Wei Xie from the School of Materials Science and Engineering at Zhengzhou University in Henan, China;
This work was supported by the National Natural Science Foundation of China (Nos. U23A20562 and 52302074). The authors would like to acknowledge Guogao Tang at Kaiple Company for TEM performance.
