As lithium costs soar and safety incidents mount, aqueous zinc-ion batteries (AZMBs) promise a cheap, non-flammable alternative—yet zinc anodes still rot from within, sprouting dendrites that short-circuit cells in days while hydrogen bubbles swell the pack. Now, a multi-institute team led by Prof. Qingli Zou (Beijing University of Chemical Technology) and Prof. Hongjin Fan (Nanyang Technological University) has delivered a design manual in Nano-Micro Letters that turns commercial Zn foil into an ultra-stable anode through simple, low-cost inorganic coatings, pushing symmetric cells beyond 6500 h and pouch cells past 200 cycles at 10 mAh cm -2 .
Why Inorganic Interface Engineering Matters
· Dendrite Suppression : Dense Al 2 O 3 , ZnO or TiO 2 layers homogenize surface charge and provide zincophilic nucleation sites, forcing lateral (002)-textured growth instead of mossy filaments.
· Hydrogen Evolution Blockade : Phosphate, silicate or MXene barriers physically isolate water from the metal, cutting HER to <0.1 % per cycle and eliminating cell swelling.
· High Areal Capacity : Non-consumable, corrosion-resistant coatings tolerate >10 mAh cm -2 and 50 mA cm -2 —meeting practical targets for grid storage and e-mobility.
Innovative Design & Features

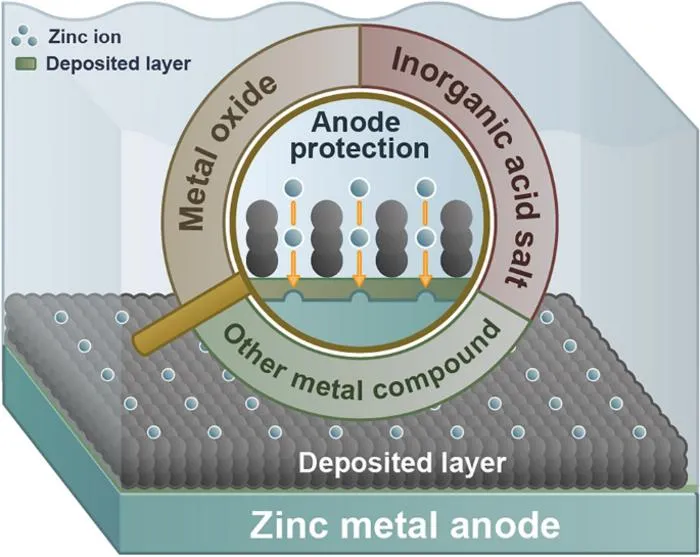

· Material Palette : Metal oxides (TiO 2 , ZrO 2 , Nb 2 O 5 ), nitrides (TiN, CrN), sulfides/selenides (ZnS, ZnSe), MXenes (Ti 3 C 2 Cl 2 ) and acid salts (Zn 3 (PO 4 ) 2 , sepiolite) are compared for ionic conductivity, adsorption energy and mechanical strength.
· Structure Engineering : Atomic-layer-deposited 10 nm Al 2 O 3 , micro-concave ZnO, hollow ZnSnO 3 cubes and 45 nm zinc-phosphate SEI each demonstrate specific pathways to guide Zn 2 ⁺ flux and suppress side reactions.
· Scale-Up Compatibility : All coatings are deposited by spray, dip, ALD or simple chemical bath—compatible with roll-to-roll processing of commercial Zn foil.
Applications & Future Outlook
· Grid-Scale Storage : A 1 Ah Zn||V 2 O 5 pouch cell with Zn-phosphate interface retains 80 % capacity after 200 cycles at 10 mAh cm -2 , projecting <$60 kWh -1 system cost.
· Flexible Devices : 10 nm MXene-coated Zn anodes survive 1 500 bends in Zn-I 2 thread batteries, enabling wearable e-textiles.
· Next Steps : Team is integrating AI-guided lattice-matching models and in-line thickness monitoring to transfer the technology to 100 Ah modules by 2026.
This roadmap converts the zinc anode from a liability into a long-lived, high-energy asset, positioning AZMBs as the front-runner for safe, sustainable and low-cost energy storage.
Nano-Micro Letters
News article
Inorganic Interface Engineering for Stabilizing Zn Metal Anode
1-Jan-2026
