As the global demand for sustainable energy solutions intensifies, the efficiency of devices like metal-air batteries and fuel cells hinges on a critical chemical process: the oxygen reduction reaction (ORR). Historically, platinum group metals have been the gold standard for catalyzing this reaction, but their scarcity and high cost remain significant barriers to widespread commercialization.
Now, a research team led by scientists from Tongji University and Guilin University of Technology has developed a potent, low-cost alternative. In a study published in the journal ENGINEERING Energy , the researchers detail a novel "proton exchange" strategy that significantly enhances the performance of manganese-based oxides, offering a promising path toward affordable, platinum-free electrocatalysts.
The Challenge with Manganese Oxides
Spinel-type lithium manganese oxide (LiMn2O4) has long been viewed as a potential candidate for replacing platinum due to its abundance, low cost, and unique crystal structure. However, its practical application has been hampered by inherent limitations, including insufficient electrical conductivity and a low density of active sites on the material's surface. Furthermore, these materials often suffer from structural instability during the harsh electrochemical processes required for energy conversion.
A Proton Exchange Solution
To overcome these obstacles, the research team employed a chemical modification technique known as proton exchange. By treating spinel LiMn2O4 with acid, the researchers were able to partially substitute lithium ions (Li + ) with hydrogen ions (H + ) within the crystal lattice.
This process did more than just swap ions; it fundamentally restructured the catalyst at the atomic level. "Experimental results reveal that proton exchange not only regulates the lattice parameters and Mn oxidation states, but also enhances surface hydrophilicity and oxygen adsorption capacity," the authors state.
Key structural changes observed include:
Superior Performance and Stability
The electrochemical performance of the modified catalyst, specifically a sample designated as "2-HLMO," proved superior to the unmodified version. The protonated catalyst achieved a half-wave potential (E1/2) of 0.81 V , a significant improvement over the 0.75 V observed in the pristine material.
Perhaps most importantly for practical applications, the material demonstrated exceptional durability. In accelerated durability testing spanning 20,000 cycles , the catalyst showed a negligible negative shift in half-wave potential of only 4 mV. Additionally, it retained over 85% of its current after 100 hours of continuous operation, significantly outperforming the unmodified oxide, which retained only about 60%.
Unlocking the Mechanism

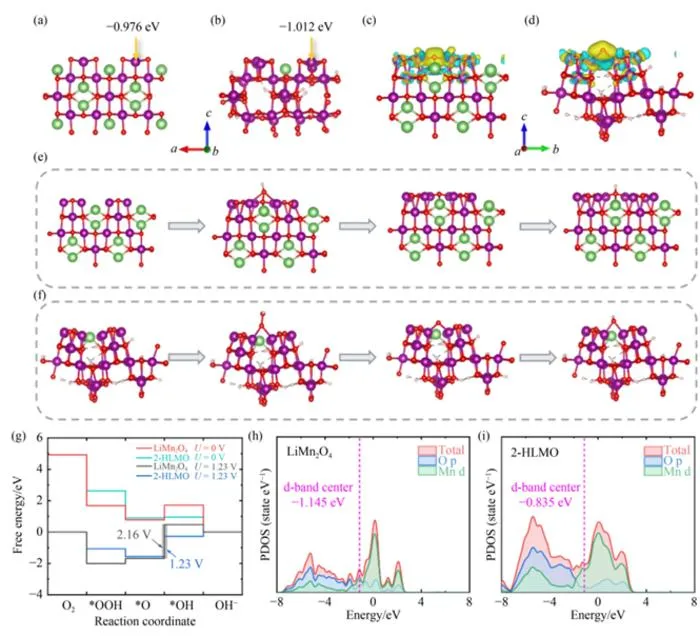

Using advanced physical characterization and theoretical calculations (Density Functional Theory), the team identified the mechanism behind this boost. The protonation prevents the "over-stabilization" of oxygen intermediates on the catalyst surface. Specifically, it lowers the energy barrier for the adsorption of *OH species—the rate-determining step in the reaction—thereby accelerating the overall kinetics of oxygen reduction.
This study establishes proton exchange as a versatile and effective strategy for engineering the structure of manganese-based oxides. The findings offer a robust framework for the rational design of next-generation, non-precious metal catalysts, bringing the world one step closer to cost-effective sustainable energy technologies.
Journal Reference Information
JOURNAL: ENGINEERING Energy
DOI: https://doi.org/10.1007/s11708-026-1039-3
Article Link: https://link.springer.com/article/10.1007/s11708-026-1039-3
Cite this article: Li, J., Zhao, S., Hu, Z. et al. Enhanced oxygen reduction reaction performance of spinel lithium manganese oxide via proton exchange. ENG. Energy 20, 10393 (2026). https://doi.org/10.1007/s11708-026-1039-3
News article
Enhanced oxygen reduction reaction performance of spinel lithium manganese oxide via proton exchange.
10-Jan-2026
