Despite its promising characteristics in condensed matter physics, the triply-degenerate semimetal PtBi 2 has been largely unexplored in practical applications, particularly in semiconductor technology. The main difficulties include a lack of empirical data on the integration of PtBi 2 with existing semiconductor components and the need for innovative approaches to leverage its unique properties, such as high stability and mobility, within the constraints of current electronic manufacturing processes. Addressing these challenges could unlock new possibilities in transistor design and broader semiconductor applications, making it crucial to explore the practical applicability of PtBi 2 in real-world electronics.

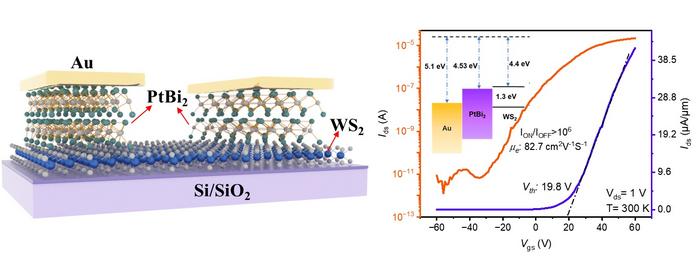

The Solution: A research team from Songshan Lake Materials laboratory successfully used PtBi 2 flakes as interlayer contact between metal electrodes (Au) and WS 2 , a widely studied semiconductor. This method significantly enhanced the transistor performance, achieving a switching ratio above 10 6 and an average mobility of 85 cm²V⁻¹s⁻¹, thus meeting and potentially exceeding the stringent demands of integrated circuit applications.
The Future: Future research is poised to explore diverse PtBi 2 -based device architectures, focusing on optimizing the interplay between device miniaturization and enhanced performance. Given its promising electronic properties, application of PtBi 2 could extend beyond traditional transistors to optoelectronic and spintronic devices.
"PtBi 2 stands out due to its unique electronic structure, exceptional air stability and ability to facilitate van der Waals contacts, which simplifies the device fabrication process and leads to stable, long-term device performance," explained Prof. Lin, one of the lead researchers of the study. "This material not only reduces the Schottky barrier, which is a common challenge in transistor technology but also avoids the Fermi pinning effect that occurs during metal deposition." One of the most notable aspects of the study is the use of a non-destructive van der Waals transfer technique, which maintains the integrity of the materials and interfaces. The researchers believe this method will offer a novel path to integrate new materials into semiconductor technology.
The Impact: The findings are expected to have broad implications for the semiconductor industry, providing a new material platform for developing more energy-efficient electronic devices with high functionality. The team is optimistic about the future applications of PtBi 2 , not only in transistors but also in optoelectronic and spintronic devices.
The research has been recently published in the online edition of Materials Futures , a prominent international journal in the field of interdisciplinary materials science research.
https://iopscience.iop.org/article/10.1088/2752-5724/ad47cf
Reference
Bohan Wei, Yun Li, Tinghe Yun, Yang Li, Tianhu Gui, Wenzhi Yu, Hanran Mu, Nan Cui, Weiqiang Chen, Shenghuang Lin. “ Triply Degenerate Semimetal PtBi 2 as van der Waals Contact interlayer in Two-Dimensional Transistor ”
DOI: 10.1088/2752-5724/ad47cf
Materials Futures
Experimental study
Not applicable
Triply Degenerate Semimetal PtBi2 as van der Waals Contact interlayer in Two-Dimensional Transistor
13-May-2024
