The integration of semiconductor lasers into photonic integrated circuits (PICs) is essential for scalable, energy-efficient optical systems, yet reflections from on-chip components inevitably introduce optical feedback. In conventional quantum well (QW) lasers, even weak feedback can cause instability, necessitating optical isolators that increase cost, footprint, and complexity. Quantum dot (QD) lasers are widely regarded as promising candidates for isolator-free integration due to their low linewidth enhancement factor and strong damping. However, previous experiments were largely limited to feedback levels around −10 dB and never reached the coherence collapse (CC) regime, leaving the true feedback limit of QD lasers in realistic, low-loss PIC environments unknown.
In a new paper published in Light: Science & Applications , a collaborative team led by Prof. Yating Wan at King Abdullah University of Science and Technology (KAUST), together with Prof. John E. Bowers at the University of California, Santa Barbara, directly addresses this challenge.
“Optical feedback is unavoidable in realistic photonic integrated circuits, yet the true feedback limit of quantum dot lasers has remained unclear,” explains Prof. Yating Wan. “By directly probing the coherence collapse boundary under extreme feedback, we establish practical design rules for isolator-free photonic integration.”

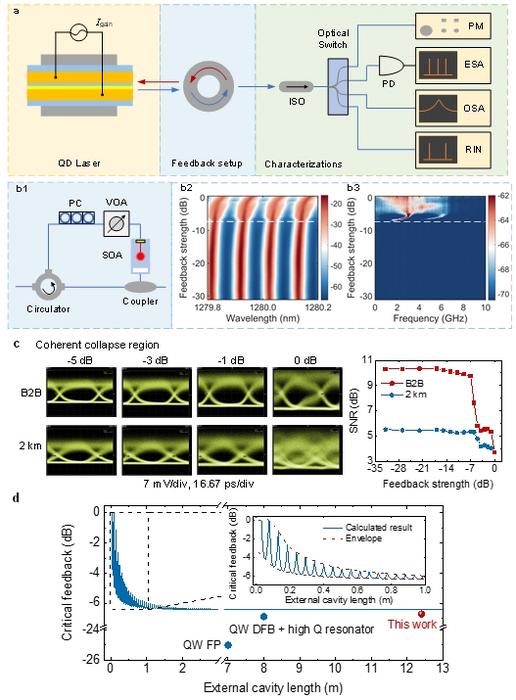

By optimizing QD epitaxial growth and Fabry–Perot laser fabrication, and introducing an in-loop semiconductor optical amplifier to compensate passive losses, the researchers constructed an experimental platform capable of delivering feedback continuously up to 0 dB. Using this platform, they directly observed coherence collapse in a standalone QD Fabry–Perot laser at −6.7 dB (21.4% return), representing the first experimental measurement of the intrinsic CC threshold of the QD material platform. Importantly, even near the coherence collapse boundary, the QD lasers maintain telecom-grade performance, supporting 10 Gbps external modulation with negligible power penalty, stable operation from 15 to 45 °C, more than 100 hours of continuous critical feedback operation, and excellent device-to-device reproducibility.“What surprised us most was that even near the coherence collapse limit, the lasers still delivered telecom-grade performance,” says Dr. Ying Shi, lead experimental author.
The experimental observations are reinforced by theoretical modeling based on Lang–Kobayashi analysis. “Our laser modeling under feedback shows that in centimeter-scale cavities typical of PIC layouts, the coherence collapse boundary shifts even closer to 0 dB,” explains Dr. Bozhang Dong and Mr. Artem Prokoshin. “Quantum dot lasers are therefore most tolerant precisely under the conditions where they are actually used.”
Benchmarking against quantum well, quantum dot, quantum wire, and VCSEL platforms further reveals that even resonator-enhanced QW laser schemes remain less feedback-tolerant than the standalone QD Fabry–Perot devices reported here.“All of these advantages are achieved using a high-performance Fabry–Perot laser structure, allowing us to probe the intrinsic limit of the QD gain medium,” notes Dr. Xiangpeng Ou, “making the approach highly compatible with scalable manufacturing.”
By eliminating optical isolators, this work simplifies packaging, improves manufacturability, and reduces system cost. By linking device physics, system performance, and realistic integration scenarios, the study establishes clear design rules for isolator-free photonic integrated circuits, paving the way for reliable and energy-efficient photonic integration across communications, sensing, LiDAR, and large-scale PIC systems.
Light Science & Applications
Exploring the feedback limits of quantum dot lasers for isolator-free photonic integrated circuits
