The color routing effect provides a unique approach for steering photon momentum in both frequency and spatial domains with high-efficiency spectrum utilization. In the investigation of propagating light wavefront modulation, color routers split light with different frequencies into divided directions. This technique has been utilized in light manipulation with multi-frequency channels, such as photonic crystal waveguides, frequency-encoded quantum information processing, etc. As photons are efficient information carriers with high robustness and large capacity, color routers that manipulate the photon momentum in multi-frequency channels can be applied for display and information technologies, especially optical information encoding and encryption with high dimensionality and low crosstalk. Previous studies on color routers mainly focus on structure design, where the modulation of photon momentum can be realized with metasurfaces, nanoantennas, and gratings, which is still difficult for further on-chip applications due to lacking flexible manipulation at the nanoscale. Therefore, an efficient solution in active controllable color routers needs to be proposed to realize its full potential in optical information applications.

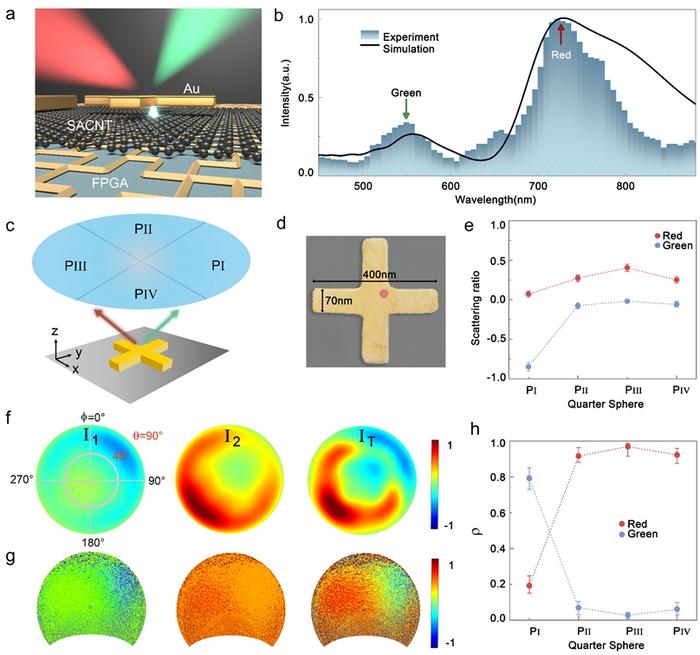

In a new paper published in Light: Science & Applications , Cheng Chi et al from Beijing Engineering Research Center of Mixed Reality and Advanced Display, School of Optics and Photonics, Beijing Institute of Technology, and co-workers have revealed the mechanism of the color routing effect with the selective electron beam excitation at the nanoscale. Based on this electron-induced color routing effect, they designed a programmable electron-induced color router array, where the emission modes of each nanoantenna can be selectively manipulated with electron beam shift at the nanoscale by a field-programmable gate array. Moreover, the team designed an encrypted display device based on programmable modulation of the color router array. This device utilizes dichromatic photon momentum and beam intensity as the carrier to promote information processing ability, which increases information capacity based on frequency-dependent angular measurement. The spatial distribution of active unit cells presents the designed image for display. However, the constant integrated intensity ratio between the green and red components in the whole angular space with different impinging positions prevents the encoding information from being read out by conventional intensity detection. The distinct angular patterns of dichromatic photon momentum splitting in momentum space are the key to decoding the encrypted image. The introduction of erasure code improves the robustness of the encoding process, contributing to a reliable encryption solution. This frequency-dependent encrypted display overcomes the light diffraction limit with controllable electron excitation and realizes the deep subwavelength scale leverage of dichromatic photon momentum that acts as the coding information. These scientists summarize the operational principle of their encrypted display device:
“In this work, we demonstrate a modulation method of dichromatic photon momentum via electron-induced color routers at deep subwavelength scale. The conversion of the featured radiation pattern can be triggered by steering the electron beam impact position. The active modulation of dichromatic photon splitting can be effectively achieved by altering the far-field interference of dipole and quadrupole moments with judiciously adjusted impinging position. More importantly, based on this principle of electron-induced color routers, we realize a programmable encrypted display device with the color router array, which provides a compelling platform for the manipulation of photon momentum at the nanoscale and paves the way for future quantum information technology and integrated photonic systems.”
“Features of deep subwavelength scale modulation, large information capacity, and enhanced security make this encrypted display device a promising candidate for information storage and processing, where high integration and minuscule size broaden its practical applications.” they added.
“Our work provides a demonstration of modulating photon momentum via electron-induced color routing effect and programmable color router array for encrypted display, which can ignite modern interdisciplinary research in the advanced display, on-chip spectroscopy, optical communication, and related applications in integrated quantum information technology.” the scientists forecast.
