Perovskite semiconductors are an exciting new material for use in solar cells. They are extremely thin and flexible, easy and inexpensive to manufacture, and highly efficient. However, two hurdles must be overcome before perovskite solar cells can be marketed on a large scale: firstly, they are not yet stable over decades, and secondly, the most powerful perovskite materials contain lead. An interesting, non-toxic alternative being investigated at HZB is tin perovskite solar cells, which are potentially more stable than their lead-containing counterparts. Thanks to their special electro-optical properties, they are particularly well suited to tandem and triple solar cells. Nevertheless, tin perovskite solar cells are still some way from achieving the high efficiencies of lead-based perovskites.
In current tin perovskite solar cells, the lowest contact layer is produced using PEDOT:PSS. This is not only a cumbersome process, but it also results in losses. However, in lead perovskites, the PEDOT:PSS layer can be replaced with a more elegant solution: self-organised monolayers (SAMs) which have even led to new record efficiencies.
Up to now, experiments with SAMs based on the MeO-2PACz compound in tin perovskites have yielded poorer results than with PEDOT:PSS. Nevertheless, principal investigator Dr. Artem Musiienko was convinced that SAMs can also offer advantages in tin perovskites.
With his partners, they analysed potential issues with using MeO-2PACz as a contact layer for tin perovskite. Density functional theory calculations revealed that the resulting interface did not align well with the adjacent perovskite lattice, resulting in substantial losses.

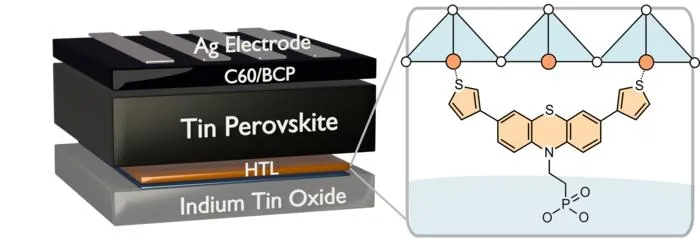

The team therefore sought alternative self-assembled monolayer (SAM) molecules that would allow a better fit. They discovered phenothiazine, a sulphur-containing functional group abbreviated as Th-2EPT. Dr Tadas Malinauskas and Mantas Marčinskas from Kaunas University of Technology in Lithuania synthesised the new compound. Compared to PEDOT, Th-2EPT enables the formation of perovskite films with comparable crystallinity, albeit with smaller grains. Tin perovskite solar cells with a SAM made of Th-2EPT outperform control cells made with either PEDOT or MeO-2PACz. Th-2EPT results in an exceptionally good interface that minimises recombination losses.
‘We have demonstrated that the performance of tin perovskite photovoltaics can be significantly enhanced through targeted and rational molecular design,’ says Artem Musiienko. The new tin perovskite solar cells with Th-2EPT achieve an efficiency of 8.2%. These results lay the groundwork for further improvements to tin perovskite interfaces, paving the way for the development of pure tin perovskite tandem solar cells. ‘We prove that the higher performance stems from the excellent optoelectronic quality of perovskite grown on the novel SAM.’ says Valerio Stacchini one of the first autors of the paper.
Note: Artem Musiienko heads the Robotised Optoelectronic Materials and Photovoltaic Engineering Group at HZB, as well as the BMBF project NanoMatFutur COMET-PV.
Advanced Energy Materials
Experimental study
Not applicable
Phenothiazine-Based Self-Assembled Monolayer with Thiophene Head Groups Minimizes Buried Interface Losses in Tin Perovskite Solar Cells
