Recently, a research collaboration led by Professor Wang Jian at Peking University, Professor Xu Yong and Professor Wu Yang at Tsinghua University has discovered high-Chern-number and high-temperature Chern insulator states in MnBi 2 Te 4 devices, representing a great breakthrough in Chern insulators and topological quantum states.
MnBi 2 Te 4 is a layered magnetic topological material. As shown in Fig. 1a, monolayer MnBi 2 Te 4 includes seven atomic layers, forming a Te-Bi-Te-Mn-Te-Bi-Te septuple layer (SL), which can be viewed as intercalating a Mn-Te bilayer into the center of a Bi 2 Te 3 quintuple layer. MnBi 2 Te 4 exhibits ferromagnetic (FM) order within SL and anti-ferromagnetic (AFM) order between neighboring SLs with an out-of-plane easy axis. Theoretical calculations show that various exotic topological states can be expected in MnBi 2 Te 4 , such as QAHE in odd SLs films, axion insulator state in even SLs films, AFM topological insulator at zero magnetic field and magnetic Weyl semimetal under perpendicular magnetic field in bulk. Abundant exotic topological states and layered structure make MnBi 2 Te 4 an excellent platform for observation and modulation of topological quantum states. The researchers fabricated several MnBi 2 Te 4 devices with different thickness. In 9-SL and 10-SL MnBi 2 Te 4 devices, a Hall resistance plateau with height of h /2 e 2 accompanied by nearly vanishing longitudinal resistance is observed by applying a perpendicular magnetic field of 5 T, which is characteristic of the Chern insulator with two dissipationless edge states ( C =2) (Fig. 1b). More interestingly, the C =2 Chern insulator state in 10-SL MnBi 2 Te 4 device can sustain above 10 K (Figs. 1c, d). This is the first experimental discovery of multiple dissipationless edge states above liquid helium temperature. The researchers further studied the influence of thickness of MnBi 2 Te 4 devices on Chern number. In 7-SL and 8-SL MnBi 2 Te 4 devices, a quantized Hall resistance plateau h / e 2 accompanying with nearly vanishing longitudinal resistance, i.e. Chern insulator state with C =1 is observed. More importantly, the Hall plateau shows nearly quantized resistance even at 45 K in 7-SL MnBi 2 Te 4 device (Figs. 2a-c) and above 30 K in 8-SL MnBi 2 Te 4 device (Figs. 2d-f), which are obviously higher than the Néel temperature (about 22 K) of MnBi 2 Te 4 devices. The observed high-Chern-number and high-temperature Chern insulator states require applying weak magnetic field due to the antiferromagnetic nature of MnBi 2 Te 4 at zero magnetic field. As the ordinary QHE can also give rise to quantized Hall resistance plateau and vanishing longitudinal resistance, it is necessary to exclude the influence of Landau levels (LLs) induced by external magnetic field on the findings. The researchers firstly estimated the mobility of MnBi 2 Te 4 devices, which is found to be ranging from 100 to 300 cm 2 V −1 s −1 . Such low mobility requires an external magnetic field higher than 30 T for QHE with LLs to be observed, which is much higher than the quantization magnetic field in our MnBi 2 Te 4 devices. The researchers further demonstrated that the sign of Chern number remains unchanged with the carrier type when applying back gate voltages, unambiguously excluding the possibility of the ordinary QHE with LLs. The origin of the observed Chern insulator states is revealed by theoretical calculations. Ferromagnetic MnBi 2 Te 4 is predicted to be the simplest magnetic Weyl semimetal, which possesses only one pair of Weyl points (WPs) near the Fermi level. Quantum confinement leads to the Chern insulator state and layer-dependent Chern number in few-layer MnBi 2 Te 4 , permitting the existence of multiple dissipationless edge states in the bulk band gap, which is consistent with the experimental findings. The discovery of high-Chern-number Chern insulator state also provides experimental evidence in a way for the magnetic Weyl semimetal state in MnBi 2 Te 4 . The high-Chern-number and high-temperature Chern insulator states discovered in the intrinsic magnetic topological materials will stimulate the exploration on higher temperature and even room-temperature QAHE, and pave the way for great breakthroughs in physics, materials science and information technology. The paper entitled “High-Chern-Number and High-Temperature Quantum Hall Effect without Landau Levels” was published online in National Science Review ( https://doi.org/10.1093/nsr/nwaa089 ) and selected for the Editors’ Choice of Science with a title of “Tuning the Chern number” (Science 368, 962(2020) https://science.sciencemag.org/content/368/6494/twil ). Professor Wang Jian at Peking University and Professor Xu Yong at Tsinghua University are corresponding authors of this paper. Ge Jun, Liu Yanzhao at Peking University and Li Jiaheng, Li Hao at Tsinghua University contributed equally to this work. This work is supported by the National Key Research and Development Program of China, the National Natural Science Foundation of China, Beijing Natural Science Foundation, the Collaborative Innovation Center of Quantum Matter and the Strategic Priority Research Program of Chinese Academy of Sciences. Noted: Editors’ Choice of Science highlights seven papers from other journals in each issue. This issue includes one paper in Physics. National Science Review
Journal
The researchers fabricated several MnBi 2 Te 4 devices with different thickness. In 9-SL and 10-SL MnBi 2 Te 4 devices, a Hall resistance plateau with height of h /2 e 2 accompanied by nearly vanishing longitudinal resistance is observed by applying a perpendicular magnetic field of 5 T, which is characteristic of the Chern insulator with two dissipationless edge states ( C =2) (Fig. 1b). More interestingly, the C =2 Chern insulator state in 10-SL MnBi 2 Te 4 device can sustain above 10 K (Figs. 1c, d). This is the first experimental discovery of multiple dissipationless edge states above liquid helium temperature.

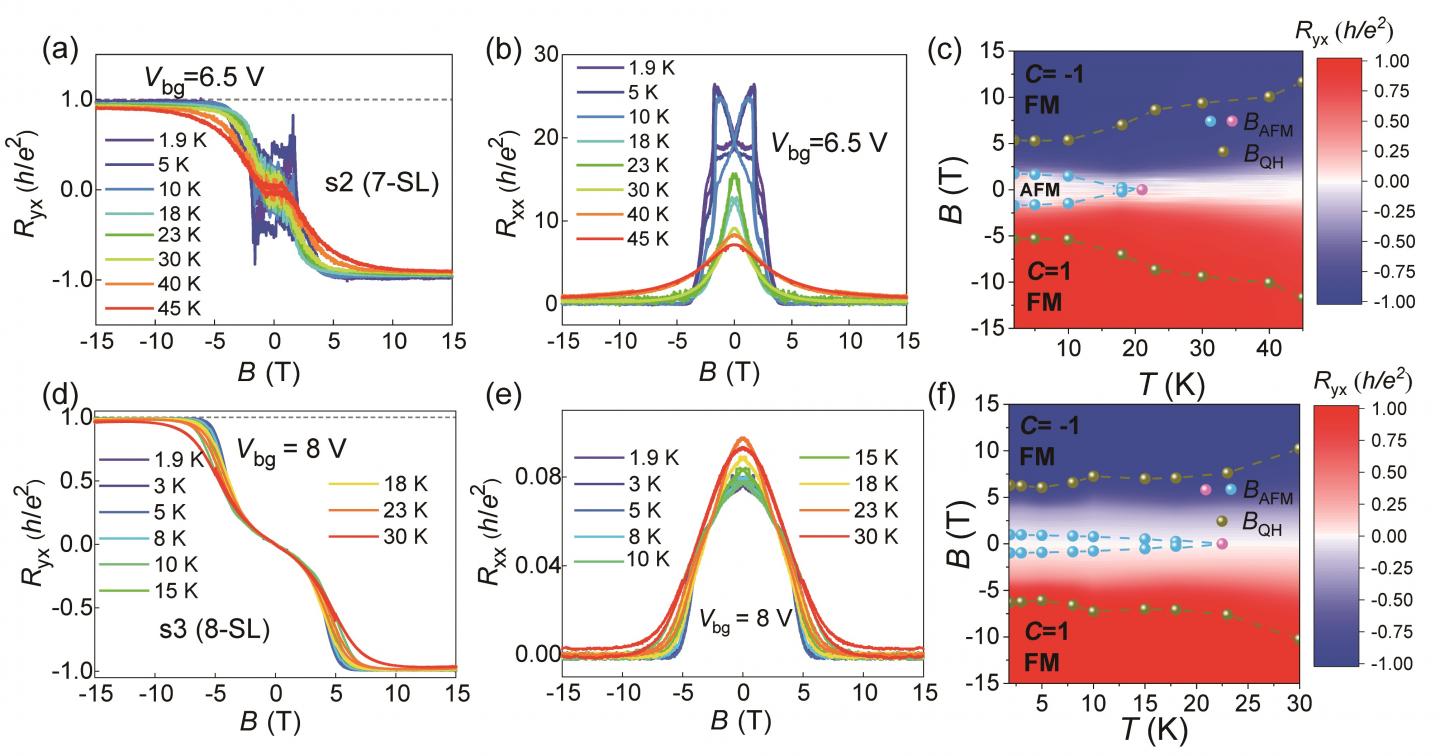

The researchers further studied the influence of thickness of MnBi 2 Te 4 devices on Chern number. In 7-SL and 8-SL MnBi 2 Te 4 devices, a quantized Hall resistance plateau h / e 2 accompanying with nearly vanishing longitudinal resistance, i.e. Chern insulator state with C =1 is observed. More importantly, the Hall plateau shows nearly quantized resistance even at 45 K in 7-SL MnBi 2 Te 4 device (Figs. 2a-c) and above 30 K in 8-SL MnBi 2 Te 4 device (Figs. 2d-f), which are obviously higher than the Néel temperature (about 22 K) of MnBi 2 Te 4 devices.
The observed high-Chern-number and high-temperature Chern insulator states require applying weak magnetic field due to the antiferromagnetic nature of MnBi 2 Te 4 at zero magnetic field. As the ordinary QHE can also give rise to quantized Hall resistance plateau and vanishing longitudinal resistance, it is necessary to exclude the influence of Landau levels (LLs) induced by external magnetic field on the findings. The researchers firstly estimated the mobility of MnBi 2 Te 4 devices, which is found to be ranging from 100 to 300 cm 2 V −1 s −1 . Such low mobility requires an external magnetic field higher than 30 T for QHE with LLs to be observed, which is much higher than the quantization magnetic field in our MnBi 2 Te 4 devices. The researchers further demonstrated that the sign of Chern number remains unchanged with the carrier type when applying back gate voltages, unambiguously excluding the possibility of the ordinary QHE with LLs.
The origin of the observed Chern insulator states is revealed by theoretical calculations. Ferromagnetic MnBi 2 Te 4 is predicted to be the simplest magnetic Weyl semimetal, which possesses only one pair of Weyl points (WPs) near the Fermi level. Quantum confinement leads to the Chern insulator state and layer-dependent Chern number in few-layer MnBi 2 Te 4 , permitting the existence of multiple dissipationless edge states in the bulk band gap, which is consistent with the experimental findings. The discovery of high-Chern-number Chern insulator state also provides experimental evidence in a way for the magnetic Weyl semimetal state in MnBi 2 Te 4 .
The high-Chern-number and high-temperature Chern insulator states discovered in the intrinsic magnetic topological materials will stimulate the exploration on higher temperature and even room-temperature QAHE, and pave the way for great breakthroughs in physics, materials science and information technology.
The paper entitled “High-Chern-Number and High-Temperature Quantum Hall Effect without Landau Levels” was published online in National Science Review ( https://doi.org/10.1093/nsr/nwaa089 ) and selected for the Editors’ Choice of Science with a title of “Tuning the Chern number” (Science 368, 962(2020) https://science.sciencemag.org/content/368/6494/twil ). Professor Wang Jian at Peking University and Professor Xu Yong at Tsinghua University are corresponding authors of this paper. Ge Jun, Liu Yanzhao at Peking University and Li Jiaheng, Li Hao at Tsinghua University contributed equally to this work. This work is supported by the National Key Research and Development Program of China, the National Natural Science Foundation of China, Beijing Natural Science Foundation, the Collaborative Innovation Center of Quantum Matter and the Strategic Priority Research Program of Chinese Academy of Sciences.
Noted: Editors’ Choice of Science highlights seven papers from other journals in each issue. This issue includes one paper in Physics.
