Low-frequency vibrations are a persistent challenge in fields ranging from aerospace and precision instrumentation to naval engineering. With frequencies typically below 5 Hz, such vibrations can disrupt sensitive equipment, introduce measurement errors, degrade performance, and even cause structural damage.
Conventional isolators often either achieve vibration suppression at the cost of load-bearing capacity or support heavy loads while failing to isolate low-frequency disturbances. Although quasi-zero-stiffness (QZS) designs have offered improvements, they usually demand delicate tuning and remain highly sensitive to operating conditions. Hence, there is a need to develop new structures that can simultaneously provide strong support and effective ultra-low-frequency isolation.
In a recent study published in the KeAi journal Fundamental Research , a team of researchers led by Professor Bo Yan at the School of Mechanical Engineering, Zhejiang Sci-Tech University, drew inspiration from nature to design a novel bio-inspired isolator.

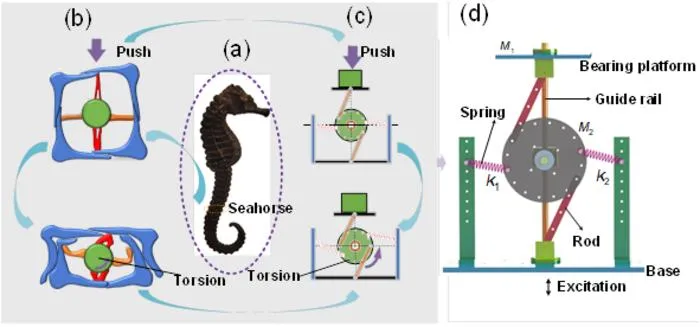

The researchers observed that the square exoskeleton of seahorse twists under force to dissipate impact. Translating this principle into engineering, they developed a structure capable of converting linear motion into torsional motion. Through the integration of a rotating disc and springs, the system generates advantageous nonlinear effects, broadening the isolation bandwidth while maintaining load-bearing performance.
The study highlights two key innovations:
“In subsequent tests, a prototype built on a vibration exciter produced results consistent with simulations,” shares Yan, “Under typical conditions, the system achieved a peak transmissibility of about 1.7 at 2 Hz, but by increasing the initial disc angle or adjusting the rod length ratio, the peak transmissibility was reduced to 1.2, while the resonant frequency shifted to 1.5 Hz.”
These findings demonstrate that the structure provides excellent low-frequency isolation performance, Further, the team found that seahorse-exoskeleton-inspired structures achieved a minimum resonant frequency of 1.5 Hz, enabled by the combined effects of torsional inertia and anti-resonance.
“This confirms the effectiveness of the bio-inspired transition mechanism in the critical low-frequency range,” adds Yan. “Spring placement and angle can be adjusted to switch between positive and negative stiffness and expand the isolation range; hinge damping can effectively suppress resonance peaks; and nonlinear damping increases with vibration amplitude, ensuring strong performance even under severe disturbances.
The team hopes that this breakthrough can move beyond the laboratory and be applied to real-world needs in precision instruments, aerospace systems, and marine equipment. “Nature has provided us with inspiration, while engineering modeling and experimental validation have ensured feasibility,” says Yan.
###
Contact the author: Hongye Ma, School of Mechanical Engineering, Zhejiang Sci-Tech University, Hangzhou 310018, China. mahongye@zstu.edu.cn
The publisher KeAi was established by Elsevier and China Science Publishing & Media Ltd to unfold quality research globally. In 2013, our focus shifted to open access publishing. We now proudly publish more than 200 world-class, open access, English language journals, spanning all scientific disciplines. Many of these are titles we publish in partnership with prestigious societies and academic institutions, such as the National Natural Science Foundation of China (NSFC).
Fundamental Research
Experimental study
Not applicable
Seahorse-exoskeleton-inspired structure with linear-to-torsion transition property for low-frequency vibration isolation.
The authors declare that they have no conflicts of interest in this work.
