An effective strategy to address increasing greenhouse gas emissions and combat climate change is the capture and reuse of carbon dioxide (CO 2 ). The reaction of CO 2 and hydrogen (H 2 ) can produce industrially useful chemicals, such as methanol and carbon monoxide, and synthetic fuels. However, in traditional reactors these chemical processes are limited by thermodynamic constraints and slow reaction rates, resulting in a low CO 2 conversion. This is because these reactors reach equilibrium before all the reactants are converted into desired products. To increase reaction speed, higher temperatures or pressures are required, but this increases energy consumption, posing a major challenge for CO 2 utilization technologies.

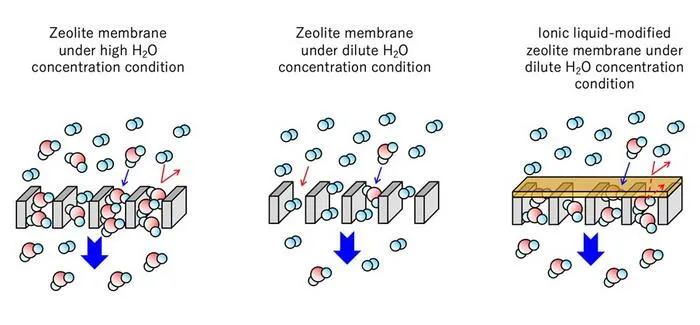

Membrane reactors are a promising solution to this problem. These reactors use hydrophilic membranes to selectively remove water (H 2 O), a common byproduct in CO 2 conversion reactions while retaining the reactants. This shifts the reaction equilibrium towards the products, improving CO 2 conversion and yields. Zeolitic membranes, such as those based on ZSM-5, are attractive candidates for membrane reactors. These materials can selectively adsorb water molecules within their micropores, preventing permeation of reactants like H 2 . However, at high temperatures and low H 2 O concentrations, which are typical in real-world operating conditions, their performance gets degraded due to poor pore blocking, allowing H 2 to permeate along with H 2 O molecules. This in turn limits the practical applicability of membrane reactors.
To address this issue, a research team led by Associate Professor Yuichiro Hirota from the Department of Life Science and Applied Chemistry at Nagoya Institute of Technology in Japan, recently developed new ZSM-5 membranes modified by a silsesquioxane framework containing ionic liquids (SQILs). “ In previous studies, ionic liquid coating has been shown to improve the H 2 O capture capacity of metal-organic framework membranes ,” says Dr. Hirota. “ Building on this result, we designed SQIL-modified ZSM-5 membranes that maintain high H 2 O permselectivity even under dilute H 2 O concentrations and high temperatures. We also analyzed how hydrophilicity of the SQIL and ZSM layers contributes to this performance.”
The study, which included contributions from Assistant Professor Motomu Sakai from Waseda University, Japan, was made available online on August 18, 2025, and will be published in Volume 735 of the Journal of Membrane Science on November 01, 2025.
In their study, the team fabricated two SQILs from polymerized 1-methyl-3-(1-triethoxysilylpropyl)imidazolium (Sipmim) cations: one containing trifluoromethanesulfonate ( OTf – ) anions, forming poly SipmimOTf , and the other containing bis(trifluoromethylsulfonyl)imide (Tf 2 N – ) anions, forming poly SipmimTf 2 N . In the tests conducted, poly SipmimOTf was found to be more hydrophilic of the two.
Furthermore, the team prepared two ZSM-5 membranes: a hydrophilic sodium cation (Na + )-type (NaZ-5) and a less hydrophilic hydrogen cation (H + )-type (HZ-5). The surfaces of these membranes were then modified with SQILs and tested for H 2 gas permeation and H 2 O permselectivity at different concentrations at a temperature of 473 K (200 °C).
The results showed that SQIL modification significantly reduced H 2 permeability and enhanced H 2 O permselectivity compared to that of unmodified ZSM-5 membranes. Moreover, membranes modified with poly SipmimOTf performed better compared to those modified with poly SipmimTf 2 N. Furthermore, poly SipmimOTf-modified NaZ-5 (OTf – /NaZ-5) showed significantly better H 2 O permselectivity, outperforming the Otf – /HZ-5 membranes.
Importantly, the SQIL-modified ZSM-5 membranes retained low H 2 permeation even at dilute H 2 O concentrations while maintaining high H 2 O permeation at elevated concentrations. The team attributed this finding to a synergistic effect arising from combining hydrophilic SQIL and ZSM layers. As Dr. Hirota explains, “ The superior dehydration of the SQIL-modified membranes arises from three factors: the low H 2 solubility and high hydrophilicity of SQILs, which minimize H 2 permeation at low H 2 O concentrations; the selective adsorption and capillary condensation of H 2 O in ZSM-5 micropores; and the shift in H 2 O sorption from Langmuir-type to Henry-type owing to SQIL modification. ”
“ The effective conversion of CO 2 into chemicals and fuels is essential for achieving carbon neutrality and a circular economy, ” adds Dr. Hirota. “ Our SQIL-modified membranes can help improve CO 2 conversion efficiency in membrane reactors and could pave the way for their broader adoption. ”
Indeed, these innovative membranes could open doors to more efficient and practical membrane reactors for CO 2 conversion, potentially contributing to reduced carbon emissions and energy conservation in chemical industries and mitigating the effects of global warming.
About Nagoya Institute of Technology, Japan
Nagoya Institute of Technology (NITech) is a respected engineering institute located in Nagoya, Japan. Established in 1949, the university aims to create a better society by providing global education and conducting cutting-edge research in various fields of science and technology. To this end, NITech provides a nurturing environment for students, teachers, and academicians to help them convert scientific skills into practical applications. Having recently established new departments and the “Creative Engineering Program,” a six-year integrated undergraduate and graduate course, NITech strives to continually grow as a university. With a mission to “conduct education and research with pride and sincerity, in order to contribute to society,” NITech actively undertakes a wide range of research from basic to applied science.
Website: https://www.nitech.ac.jp/eng/index.html
About Associate Professor Yuichiro Hirota from Nagoya Institute of Technology, Japan
Dr. Yuichiro Hirota obtained his Master's and PhD degrees in Engineering from Osaka University in 2009 and 2012, respectively and joined Nagoya Institute of Technology as an Associate Professor in 2020. His research focuses on nanostructured materials, such as nanoporous inorganic and organic/inorganic hybrid materials and nano-scale reactors. In addition, Dr. Hirota investigates membrane separation and catalytic reaction processes using such compounds. He has published over 70 research papers on these topics.
Journal of Membrane Science
Experimental study
Not applicable
Silsesquioxane framework containing ionic liquid−modified NaZSM-5 membrane for H2O/H2 separation at high temperature
1-Nov-2025
The authors declare the following financial interests/personal relationships which may be considered as potential competing interests: Yuichiro HIROTA reports financial support provided by The Kazuchika Okura Memorial Foundation. Yuichiro HIROTA reports financial support provided by The Tokai Foundation for Technology. Other authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
