This study introduces the Pt-Co@NCS catalyst, showcasing a remarkable synergy between Pt nanoparticles and Co single atoms on a nitrogen-doped carbon scaffold. This innovative design overcomes the hurdle of slow water dissociation, leading to exceptional performance in alkaline hydrogen evolution reaction (HER). With a current density of 162.8 mA cm -2 , a Tafel slope of 26.2 mV dec -1 , and a superior mass activity of 15.75 mA μg Pt -1 , the Pt-Co@NCS catalyst marks a significant leap forward in enhancing hydrogen evolution efficiency. These findings promise a bright future for sustainable energy solutions.
In recent years, innovative catalysts have been engineered to enhance the local environment at the Pt-group interface on traditional oxide supports such as CeO 2 , TiO 2 , and SiO 2 . However, these oxide supports are inferior to carbon supports due to limited charge transfer and additional energy losses from internal resistance at high current densities. The need for improved water dissociation kinetics has led to the use of nanostructured, nitrogen-doped carbon supports. This approach has demonstrated a synergistic interaction with water at the defective nitrogen-doped sites, significantly enhancing HER performance.
A recent study published in Materials Futures reported the successful synthesis of an innovative Pt-Co@NCS catalyst, overcoming the traditional bottleneck of slow water dissociation.

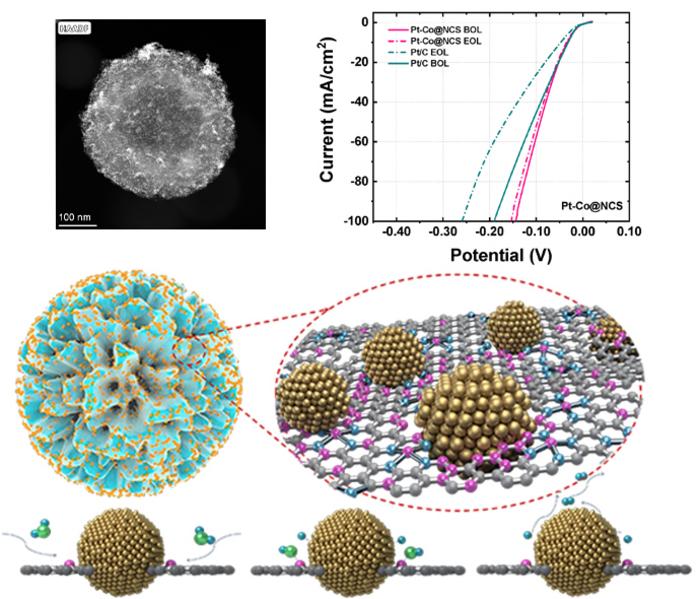

In this paper, the authors constructed a hierarchically porous N-doped carbon scaffold (NCS) catalyst containing Co single atoms and Pt nanoparticles for alkaline HER. The porous structure was created through the polymerization of m-phenylenediamine and etching of a silicon oxide coating. Pt and Co precursors were then pyrolyzed in the confined space of NCS, transforming into tiny Pt nanoparticles and atomically dispersed Co-N 4 sites. The key to its remarkable performance lies in the unique porous concave structure paired with a nitrogen-rich defective surface, which collectively enhances hydrophilicity and catalytic interaction around the Pt sites. This unique structure also minimized the potential aggregation of metal species, enhancing both the long-term activity and stability of Pt-Co@NCS. The synergistic interaction of Pt nanoparticles and Co single atoms, along with the nanoscale geometrical effects, significantly enhances water dissociation by promoting OH- adsorption to the Co single atoms in an alkaline environment. Rigorous CO stripping and deuterium labeling experiments confirmed the promoted water dissociation pathway related to these synergistic interactions. This research highlights the essential role of tailoring the microenvironment around catalytic sites, especially for alkaline applications, to enhance activity and stability.
The Future: Based on the demonstrated effectiveness of the Pt-Co@NCS catalyst in enhancing HER efficiency in alkaline media, the future of material development for single-atom and crystalline synergistic catalysis appears highly promising. This field is expected to further explore the vast potential of high-density atomically dispersed metal catalysts on various materials. Future research could focus on diversifying the types of metal atoms and doping elements in the substrate to tailor catalytic properties for specific reactions beyond HER, as well as exploring the long-term stability and scalability of these catalysts. Moreover, developing in situ and real-time techniques for monitoring synergistic catalytic processes at the atomic level is crucial for understanding the dynamic interactions within the catalyst microenvironment. Through these efforts, the catalysis community is likely to make significant strides in creating more efficient, durable, and economically viable catalysts to support sustainable energy technologies.
The research has been recently published in the online edition of Materials Futures , a prominent international journal in the field of interdisciplinary materials science research.
Reference
Shu C, Cao J, Gan Z, et al. Synergistic Effect between Co Single Atoms and Pt Nanoparticles for Efficient Alkaline Hydrogen Evolution. Materials Futures, 2024.
https://doi.org/10.1088/2752-5724/ad521f
Materials Futures
Experimental study
Not applicable
Synergistic Effect between Co Single Atoms and Pt Nanoparticles for Efficient Alkaline Hydrogen Evolution
30-May-2024
