Recently, Engineering published the research work on sodium nitrate passivation as a novel insulation technology for soft magnetic composites developed by Prof. Mi Yan and Dr. Chen Wu’s team. Soft magnetic composites, which are fabricated based on metallic magnetic powders via insulation coating, binding, compaction, and annealing, serve as the key fundamental material in various fields including energy, transportation, aerospace, and national defense. Due to the low-electrical-resistivity nature of the soft magnetic alloys, it is challenging to control the eddy current loss, which has become a bottle-neck problem for high-frequency applications. For scientific research and industrial production, phosphorization technology is usually used to generate insulation coatings. However, the resultant phosphate coating tends to decompose above 600 ℃ and lose the insulation effect at elevated temperatures. It is of great significance to develop new insulation technology to form coating layers with strong adhesion, together with satisfactory thermal stability and electrical resistivity for high-frequency applications of soft magnetic composites.

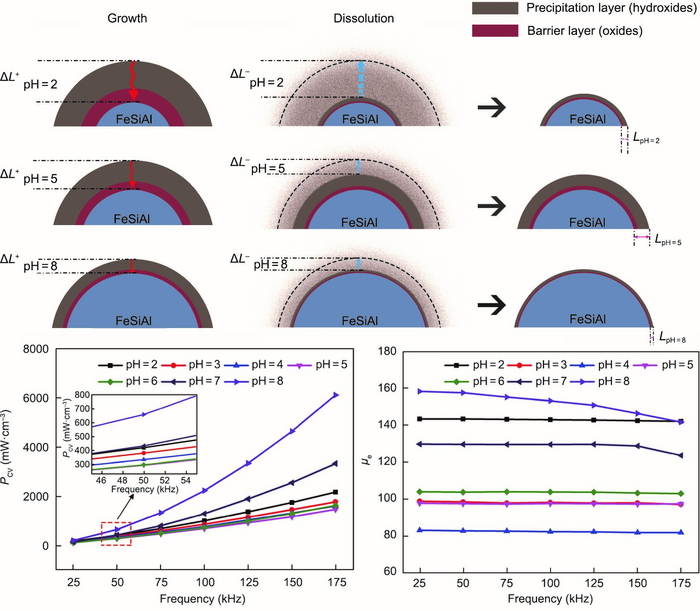

In this work, Prof. Yan and Dr. Wu’s team has proposed sodium nitrate passivation as a novel insulation technology for soft magnetic composites. Evolutions of the coating under different pH conditions have been revealed based on systematic compositional and microstructural investigations, with the growth mechanisms of the coatings unveiled through kinetic and thermodynamic analyses. The study shows that the insulation coating obtained using an acidic NaNO 3 passivation solution with pH = 2 consists of Fe 2 O 3 , SiO 2 , Al 2 O 3 , and AlO(OH). Large growth rate of the coating layer is resulted due to the strong oxidation capability of NO 3 − under acidic conditions, while the dissolution rate of the passivation layer is also high because of the large H + concentration, giving rise to small thickness of the passive layer at pH = 2. With increased pH to 5, the Fe 2 O 3 converts into Fe 3 O 4 with weakened oxidation capability of NO 3 − . Despite the slightly decreased growth rate of the passivation layer, the reduction of H + concentration also greatly inhibits its dissolution, resulting in a maximum thickness of the insulation coating for significantly enhanced electrical resistivity and optimum alternating current (AC) magnetic performance ( μ e = 97.2, P cv = 296.4 mW/cm 3 under 50 kHz and 100 mT). Further raising the pH to 8 significantly weakens the oxidability of the NO 3 − , resulting in only Al 2 O 3 , AlO(OH), and SiO 2 in the passivation layer with slow growth and significantly reduced thickness. In addition, corrosion occurs to some regions of the magnetic powder surface, leading to deteriorated performance.
The NaNO 3 passivation technology developed in this work is not only extendable to other magnetic alloy systems but also lays solid foundation for the development of novel and advanced insulation coatings use oxidizing agents such as nitrite, superoxide, and permanganate.
