For most people, using a device means touching a screen, pressing a button, speaking a command, or making a gesture. But these actions are not always possible. A person with limited mobility may be unable to press a call button. A patient may be conscious but unable to speak clearly. In hospitals, laboratories, public spaces, or hands-busy situations, touching a device may also be inconvenient or undesirable.
What if a simple breath could send a signal?
In a recent study published in Science Bulletin , researchers from Zhejiang University and Northeast Forestry University developed a wearable optoelectronic clip that turns exhaled breath into a clear optical switching signal. The device is small enough to be worn on clothing and can be activated simply by breathing toward it. The work was led by Professors Lei Zhang and Limin Tong from Zhejiang University, and Professor Wenshuai Chen from Northeast Forestry University.
Breath is an attractive signal for human-machine interaction because it is natural, continuous, and does not require hand movement. Exhaled air also contains abundant moisture. This makes humidity sensing a possible route for touch-free control. However, conventional humidity sensors can be easily disturbed by changes in the surrounding environment. In humid air or inside a face mask, they may respond even when no intentional command is given.
To address this challenge, the research team designed a sensor that does not simply measure humidity. Instead, it responds to the condensation of moisture caused by human exhalation. At the heart of the device is an optical microfiber partially encapsulated by a cellulose nanocrystal film. Optical microfibers are very thin fibers that guide light while remaining highly sensitive to their surroundings. Cellulose nanocrystals are sustainable nanomaterials derived from natural cellulose and have strong affinity for water.
During fabrication, the cellulose nanocrystals form a wrinkled film around the optical microfiber through the coffee-ring effect, a familiar phenomenon in which particles gather as a liquid droplet dries. Under normal ambient conditions, this wrinkled film scatters light in the microfiber, keeping the output signal very low. The device is therefore in an “off” state.
When a person exhales toward the clip, water vapor rapidly condenses into tiny droplets on the hydrophilic nanocellulose film. These droplets change the optical environment around the microfiber, reduce light scattering, and sharply increase the light output. The device switches to an “on” state. After exhalation stops, the droplets evaporate quickly and the signal returns to the “off” state.
This on-off behavior gives the sensor a simple and robust output. In experiments, the device showed an ON/OFF ratio of about 100, with a response time of about 280 milliseconds and a recovery time of about 140 milliseconds. It also remained stable over more than 1000 exhalation-evaporation cycles.

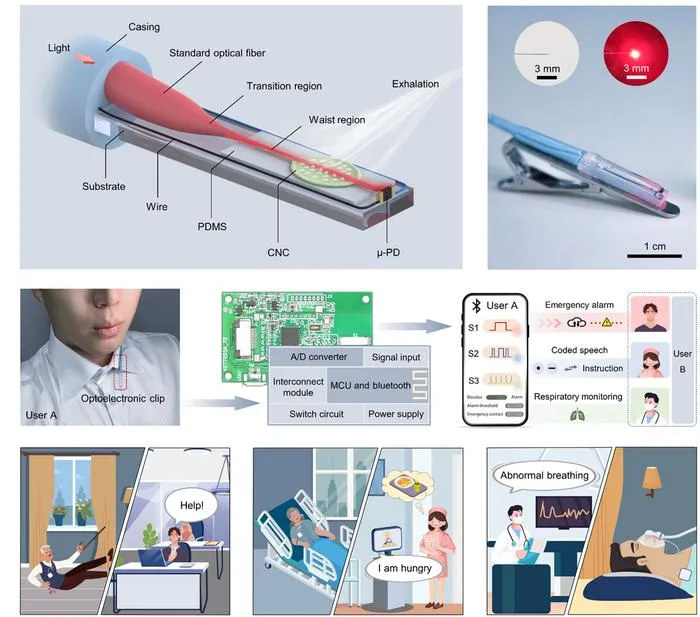

The researchers then integrated the sensor with a small clip, light source, photodetector, circuit board, and wireless communication module. The resulting wearable optoelectronic clip can be attached to a collar and triggered by a deliberate breath.
The team demonstrated several possible applications. A long exhalation could trigger a remote emergency alert, which may be useful for elderly people living alone or individuals with limited mobility. Short and long breaths could also be combined into coded instructions, allowing users to send simple messages such as “I am hungry,” “I feel pain,” or “turn on/off the light.” In another demonstration, the clip was integrated into a face mask to monitor breathing patterns.
In multi-user tests of coded interaction, the system achieved an accuracy of 98.5%, with an omission rate below 1.5% and no false triggering. These results suggest that breath-responsive wearable devices may provide a practical route toward touch-free human-machine interaction, assistive communication, and respiratory health monitoring.
By combining biobased nanocellulose with optical microfiber sensing, the study offers a new way to transform an everyday action—breathing—into a reliable signal that machines can understand.
Science Bulletin
Experimental study
Exhalation-responsive optoelectronic clip: switchable non-contact wearable sensor enabled by nanocellulose-partially-encapsulated optical microfibers
