Faults movement and development are the most challenging issues in tectonic geology. The classical theory and experimental studies have been carried out with a penetrative fault (2D state). However, the formation and evolution of faults in the crust is basically three-dimensional (3D) such that the fault extends from the ground surface to a certain depth of the crust only. The results from 2D analysis are difficult to transfer to the 3D case. Recently, some researchers have tried to describe the 3D fault growth process using different theoretical model and experimental studies. However, there are some difficulties in establishing a theoretical model to explain the whole surface fault growth process, and the experimental studies were not systematically continued.
Recently, a large number of the experiments on 3D surface fault (flaw) growth study were carried out in the Rock Mechanics Laboratory of The Hong Kong Polytechnic University with varied material, including PMMA, gypsum and real rocks of granite, gabbro, sandstone and marble samples. Although these studies provide some foundational understanding on surface fault growth, the rupture development from surface fault is not yet fully understood.

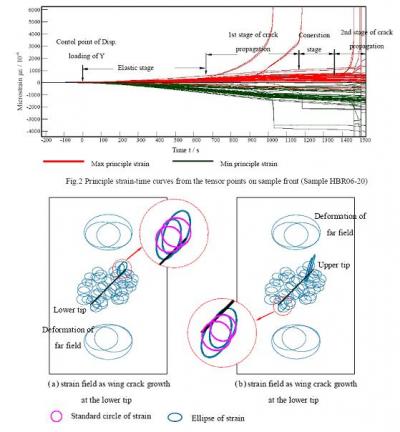

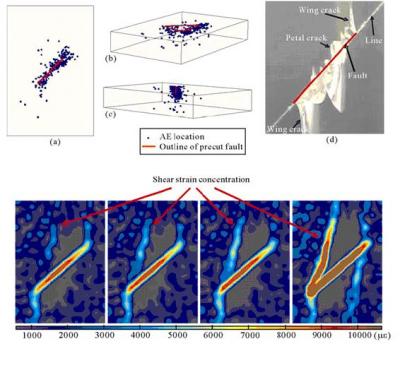

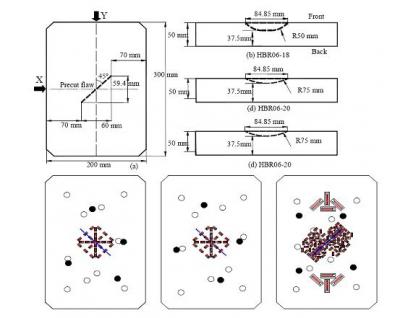

This study used three different observation methods to study the rupture conformations of a surface fault under biaxial compression. The granite sample is used in this study with the size shown in Fig. 1a). The deformation around the fault is measured and fully analyzed with a high-density Multi-Channel Digital Strain Gauge (MCDSG Figs. 1e-g) and Digital Speckle Correlation Method (DSCM) which is an images analysis of visible light. Simultaneously the micro-fractures involving the fault formation is observed, using a 3D acoustic emission (AE) location system with a set of multi-channel whole-wave record equipment (Fig. 1e-g). The result of this paper represents the first comprehensive investigation on the 3D rupture conformations of a surface fault with reliable and detailed observation and analytical method. The experimental studies were carried out at State Key Laboratory of Earthquake Dynamics, China Earthquake Administration, Beijing. The analysis of multi strain system (MCDSG) and 3D AE location were carried out respectively by Liu LiQiang (Figs. 2 &3) and Liu PeiXun (Fig. 4) of State Key Laboratory. The speckle correlation analysis (SCDM) was carried out by Ma ShaoPeng (Fig. 5) of Beijing Institute of Technology.
The three main conclusions reported by the investigators.
This study is accepted for publication in Science in China Series D: Earth Sciences because it is not only to provide a fundamental understanding of the rupture development from surface fault but also to enrich the knowledge on the determination of 3D location of acoustic emission (AE). It will have a significant impact on the future study of the active fault movement.
The research team includes four institutions: (1) The Hong Kong Polytechnic University; (2) State Key Laboratory of Earthquake Dynamics, Institute of geology, China Earthquake Administration, Beijing; (3) Beijing Institute of Technology; and (4) Shandong University of Science and Technology. This study, however, was carried out only in the first three institutes.
The study is financially supported by the Hong Kong Polytechnic University to RHC Wong (PolyU 5049/01E , PolyU5285/05E, A-PG46, and G-YF88), and by the State Key Laboratory of Earthquake Dynamics; (LED0501) Institute of Geology and the China Earthquake Administration, Beijing, the National Science Foundation of China to W.S. Zhu (40212120, 90510019 and 50579033), and the National Basic Research Program (973 Program) of China to W.S. Zhu and S.C. Li (2002CB 412705).
