Lasers that are fabricated directly onto silicon photonic chips offer several advantages over external laser sources, such as greater scalability. Furthermore, photonic chips with these “monolithically” integrated lasers can be commercially viable if they can be manufactured in standard semiconductor foundries.
III-V semiconductor lasers can be monolithically integrated with photonic chips by directly growing a crystalline layer of laser material, such as indium arsenide, on silicon substrate. However, photonic chips with such integrated laser source are challenging to manufacture due to mismatch between structures or properties of III-V semiconductor material and silicon. ‘Coupling loss’ or the loss of optical power during transfer from laser source to silicon waveguides in the photonic chip is yet another concern when manufacturing photonic chips with monolithically integrated lasers.

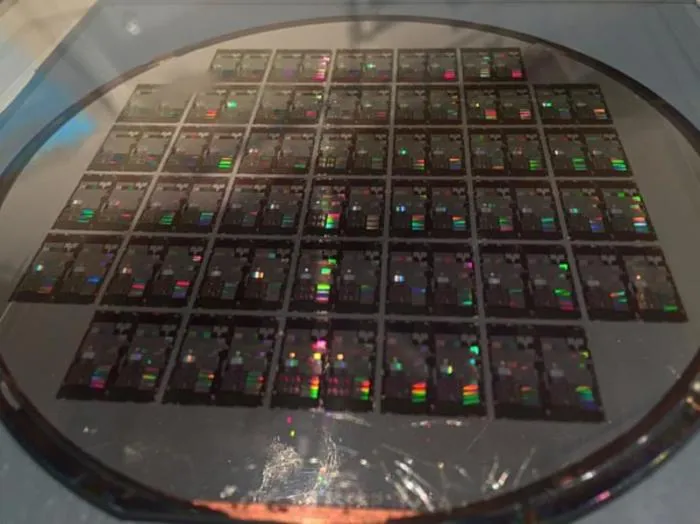

In a study that was recently published in the IEEE Journal of Lightwave Technology , Dr. Rosalyn Koscica from the University of California, United States, and her team successfully integrated indium arsenide quantum dot (QD) lasers monolithically on silicon photonics chiplets. According to Dr. Koscica, “ Photonic integrated circuit (PIC) applications call for on-chip light sources with a small device footprint to permit denser component integration.”
To achieve this monolithic integration, the authors combined three key concepts: the pocket laser strategy for monolithic integration, a two-step material growth scheme that includes both metalorganic chemical vapor deposition and MBE for a smaller initial gap size, and a polymer gap-fill approach to minimize optical beam divergence in the gap, to develop monolithically integrated QD lasers on silicon photonics chiplets.
On testing, the chiplets with monolithically integrated lasers demonstrated sufficiently low coupling loss. As a result, the QD lasers operate efficiently on a single O-band wavelength within chiplets. The O-band wavelength is desirable as it allows for transmission of signals within photonic devices with low dispersion. Lasing in the single frequency is achieved using ring resonators made from silicon or distributed Bragg reflectors made from silicon nitride.
“Our integrated QD lasers demonstrated a high temperature lasing up to 105 °C and a life span of 6.2 years while operating at a temperature of 35 °C,” says Dr. Koscica.
The laser integration technique has the potential to be adopted widely due to two reasons. Firstly, the photonics chips can be manufactured in standard semiconductor foundries. Secondly, the QD laser integration technique can work for a range of photonic integrated chip design without needing extensive or complex modifications.
The proposed integration technique can be applied to a variety of photonic integrated circuit designs by modifying the silicon photonics components, paving the way for a scalable, cost-effective monolithic integration of on-chip light sources for practical applications.
***
Reference
Authors: Rosalyn Koscica et al.
Affiliations:
Journal of Lightwave Technology
Experimental study
Not applicable
Quantum Dot DBR Lasers Monolithically Integrated on Silicon Photonics by In-Pocket Heteroepitaxy
28-Mar-2025
