Developing highly efficient electrocatalysts for the CO 2 reduction reaction has attracted increasing interests in the past decade. Fe porphyrins have been shown to be highly efficient and selective for the CO 2 -to-CO conversion. Extensive efforts have been made recently to investigate structural effects of Fe porphyrins on the CO 2 reduction reaction (CO 2 RR), and fundamental knowledge of structure-activity relationships has been obtained. For example, it is suggested that intramolecular proton relay sites and also electrostatic interaction substituents can significantly improve catalytic efficiency for CO 2 RR. Despite these achievements, however, the effect of alkaline metal cations on CO 2 RR has been rarely studied, although practical CO 2 RR electrocatalysis is required to be carried out in aqueous solutions containing electrolytes of alkaline metal cations, such as sodium and potassium.
Recently, a research team led by Prof. Rui Cao from Shaanxi Normal University, China reported the effect of alkaline metal cations, including Na + and K + , on electrocatalytic CO 2 reduction reaction using Fe porphyrins. The results were published in Chinese Journal of Catalysis .
First, the authors synthesized a simple iron porphyrin: tetra-(3,4,5-trimethoxyphenyl)-iron porphyrin (FeP). The structure of FeP was characterized by nuclear magnetic resonance, mass spectrometry and single crystal X-ray diffraction. By testing the CO 2 RR activities in a DMF solution containing electrolyte, the experimental results showed that FeP can achieve CO 2 RR with high efficiency. The catalytic currents increased linearly with FeP, suggesting a first-order dependence of the catalytic rates on the concentrations of FeP. Controlled potential electrolysis confirmed the stability of FeP by functioning as a CO 2 RR electrocatalyst, showing stable currents during the electrolysis and almost identical UV-vis spectra of FeP before and after electrolysis. The evolved CO was analyzed by using gas chromatography, giving a Faradaic efficiency of 95% for the CO 2 -to-CO conversion.

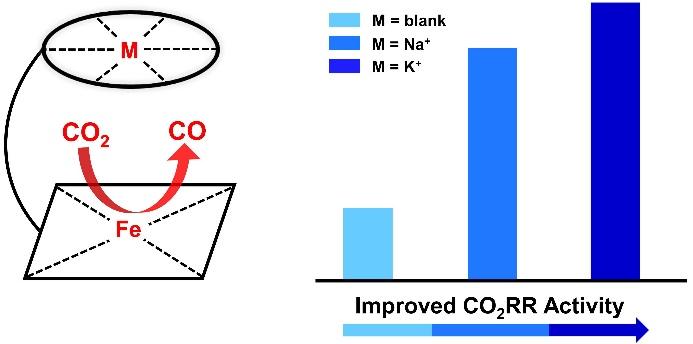

Based on the backdrop, the authors found that the addition of Na + and K + can significantly improve the catalytic activity, and the addition of K + makes the catalytic current increase more significantly. This may be due to the fact that the migration speed of K + in the solution is faster than that of Na + . Based on this experimental phenomenon, the authors synthesized N 18C6-FeP, which bears a tethered N 18C6 group to bind Na + and K + ions. The results showed that with the tethered N 18C6 to bind Na + and K + , N 18C6-FeP is more active than FeP for electrocatalytic CO 2 RR. Particularly, by binding Na + for intramolecular catalysis, the CO 2 RR activity can be significantly boosted compared to that with free Na + ions. This work thus provides new insights into the design of efficient catalysts for CO 2 RR, which will be also valuable for designing catalysts of other small molecule activation reactions.
###
This work was supported by the Natural Science Foundation of China (Grant Nos. 21573139 and 21773146), Fok Ying-Tong Education Foundation for Outstanding Young Teachers in University, Fundamental Research Funds for the Central Universities, and Research Funds of Shaanxi Normal University.
