Access to clean water depends not only on preventing pollution but also on being able to detect contaminants quickly and reliably. Among the pollutants of concern are metal ions such as mercury, lead and zinc, which can enter aquatic environments through industrial and other human activities.
Detecting these substances, particularly at low concentrations, often requires specialized analytical equipment and trained personnel. This has motivated scientists to investigate alternative sensing technologies that could eventually make water monitoring faster, simpler and more accessible.
A new study published in Electron explores one such possibility using an unusual combination of light, aluminum and graphene oxide. Researchers from institutions in Ecuador and Italy have computationally designed and optimized a multilayer optical sensor intended to respond to very small changes in the optical properties of water associated with Hg(II), Pb(II) and Zn(II), as well as selected mixtures containing two of these metal ions.
Importantly, the proposed sensor has not yet been fabricated or tested with real environmental water samples. The study represents a numerical design and optimization stage intended to establish which combination of materials could provide a promising basis for future experiments.

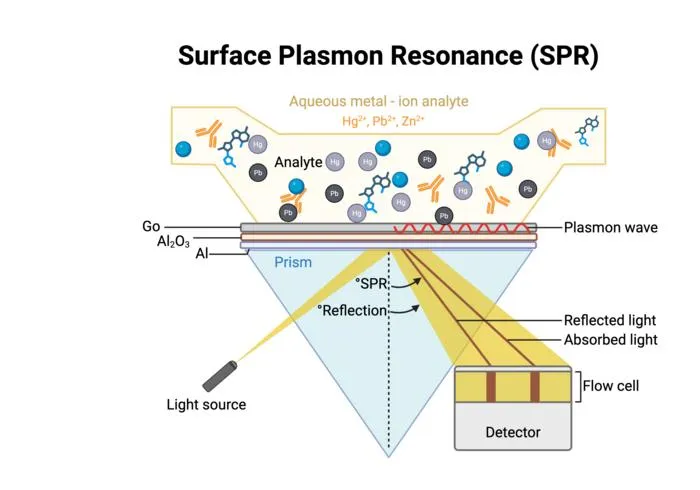

The proposed technology is based on surface plasmon resonance , or SPR.
If that environment changes, the resonance angle changes as well. This means that a tiny variation occurring close to the sensor surface can be converted into a measurable change in light.
In the proposed sensor, the researchers modeled what would happen when aqueous environments corresponding to different metal-ion conditions altered the refractive index around the sensing surface. The simulations showed that these small optical changes produced measurable shifts in the predicted SPR resonance.
In simple terms, the approach seeks to translate an otherwise invisible change in the water into a change in the behavior of light.
Rather than starting with a single material, the research team investigated how several thin layers could work together. The final simulated architecture contains four principal components: a borosilicate glass prism, a 60-nanometer aluminum film, a 32-nanometer aluminum oxide layer and a graphene oxide sensing layer.
Each component performs a different function. The borosilicate prism helps couple incoming light into the structure. It was selected after being compared computationally with other prism materials and provided a favorable balance between optical response and resonance sharpness under the conditions investigated.
Aluminum forms the plasmonic metallic layer. Gold is commonly associated with SPR sensing because of its chemical stability, but aluminum is abundant and comparatively inexpensive. The study therefore explored aluminum as a potentially lower-cost alternative.
Aluminum, however, oxidizes easily. The researchers consequently incorporated aluminum oxide, Al₂O₃, into the design. In the model, this layer serves both as a protective or passivating component and as an important part of the optical architecture. The final surface is coated with graphene oxide, a carbon-based nanomaterial containing oxygen-bearing chemical groups.
The scientists compared four carbon nanomaterials as possible sensing layers: graphene oxide, reduced graphene oxide, graphene and semiconducting single-walled carbon nanotubes.
Some of these materials generated larger shifts in resonance angle than graphene oxide. A larger shift alone, however, does not necessarily make a better sensor.
A useful optical signal must also remain sufficiently narrow and well defined to be measured precisely. The simulations showed that single-walled carbon nanotubes generated a particularly large angular response but also produced extreme broadening of the resonance. Reduced graphene oxide and graphene showed other compromises between signal displacement and resonance width. Graphene oxide provided the most balanced behavior among the nanomaterials evaluated: a measurable resonance shift combined with a comparatively narrow resonance.
This result illustrates an important principle in sensor design. The material producing the largest response is not automatically the best choice. A useful sensor requires a balance between how strongly the signal moves and how clearly that movement can be measured.
After optimizing the multilayer structure, the researchers modeled aqueous environments associated with Hg(II), Pb(II) and Zn(II), as well as two binary mixtures containing mercury.
Among the individual metal-ion conditions, Zn(II) produced the highest modeled angular sensitivity, while Hg(II) produced the lowest. Importantly, the two binary mixtures retained sensitivities above 333 °/RIU, indicating that the optical response of the simulated architecture remained strong under the mixed conditions evaluated.
This is relevant because environmental water does not necessarily contain only one dissolved species at a time. By including binary mixtures, the study moves beyond an idealized single-ion scenario and provides an initial computational basis for investigating more complex sensing environments.
However, these results should not be interpreted as evidence that the proposed sensor can already identify specific metal ions in real water samples. The simulations distinguish the modeled conditions through changes in refractive index. Experimental validation, interference studies and selective surface functionalization would still be required to demonstrate chemical selectivity in realistic water matrices.
The computational model differentiates the investigated conditions through small changes in refractive index, an optical property describing how light propagates through a material.
The study does not establish that unmodified graphene oxide is intrinsically selective only for mercury, lead or zinc. In real water, many additional factors could influence the optical signal. These include sodium, calcium and magnesium ions, as well as pH, temperature, ionic strength and dissolved organic substances. Competitive interactions among different ions and the kinetics of their adsorption onto the sensing surface were also outside the scope of the current numerical model.
Future experimental versions of the sensor may therefore require selective surface functionalization — essentially adding chemical recognition elements that preferentially interact with particular target ions.
The simulations produced optical limits of detection on the order of 10⁻⁵ refractive-index units. This number should not be interpreted as a concentration in parts per million or parts per billion.
At this stage, it represents the smallest modeled change in refractive index that the optical system could theoretically resolve under the assumptions used in the calculations. Determining how that optical limit translates into actual concentrations of mercury, lead or zinc will require calibration with experimentally prepared samples.
The researchers see the work as a starting point rather than a finished sensing device. Several challenges remain before the concept could become a practical tool.
Real thin films contain imperfections. Their surfaces may be rough, their thickness may vary slightly, and aluminum may continue to oxidize over time. Graphene oxide coatings may also be nonuniform. All of these factors could change the resonance observed experimentally.
Real water presents an additional challenge because it contains many substances not included in the current simulations. The next stages identified in the study therefore include fabrication-tolerance analysis, experimental production of the multilayer structure, selective surface functionalization, evaluation of long-term stability and testing with real water samples.
The authors also propose that future experimental systems could use conventional thin-film deposition for aluminum, controlled formation of the aluminum oxide layer and solution-based deposition of graphene oxide. Compact optical or microfluidic components could eventually be investigated as part of portable sensing formats.
For now, the study establishes the computational blueprint . Its central finding is that a relatively simple combination of borosilicate glass, aluminum, aluminum oxide and graphene oxide can, under modeled conditions, produce a sensitive optical response to small refractive-index variations associated with individual metal-ion environments and selected binary mixtures.
The work illustrates how nanomaterials, optics and computational modeling can be brought together to explore new approaches to environmental sensing — while also defining the experimental questions that must be answered before such a design can move from computer simulation to real-world water monitoring.
Electron
Computational simulation/modeling
Not applicable
Simulation-Driven Optimization of a Borosilicate/Al/Al₂O₃/Graphene Multilayer SPR Sensor for Aqueous Detection of Metal Ions and Their Binary Mixtures
13-Jul-2026
