NiCoCr-based high-entropy alloys strengthened by L1 2 intermetallic precipitates are among the most promising candidates for elevated-temperature structural applications, rivaling or surpassing conventional Ni- and Co-based superalloys. The Ni 33.3 Co 33.3 Cr 23.4 Al 5 Ti 5 HEA is a striking example, delivering a yield strength of about 1060 MPa and an ultimate tensile strength of about 1280 MPa with 25% ductility at 600 °C, outperforming Inconel 625. This performance relies on the synergy between a complex defect substructure of dislocation tangles, stacking faults, deformation twins, and immobile Lomer-Cottrell locks, and coherent L1 2 precipitates. However, such performance survives only within a narrow temperature window: a modest temperature increase above 600 °C triggers abrupt, catastrophic softening. Whether the disappearance of the defect substructure is thermally driven, stress-activated, or governed by their coupling has remained unresolved, and existing alloy design strategies, focused predominantly on precipitate coherency, offer no predictive framework for this failure.
The Solution: The researchers systematically investigated the abrupt softening transition through stress-relaxation tests conducted from 500 °C to 800 °C, multiscale microstructural characterization, and a clever internal control: comparing the stressed gauge section with the strain-free grip end of the very same specimen. Kinetic analysis of the relaxation data revealed that below 650 °C, deformation is controlled by dislocation climb, with a high stress exponent of n = 5-6 and an apparent activation energy of 301.84 kJ mol -1 , a deformation mechanism that preserves the defect network responsible for strengthening. Above 650 °C, the stress exponent collapses to 1.31 and the activation energy drops to 99.61 kJ mol -1 , a value close to that of grain boundary diffusion in nickel (about 115 kJ mol -1 ) and three to five times lower than that of conventional dynamic recrystallization in Ni-based superalloys, which typically requires temperatures of 1010-1210 °C. The gauge-grip comparison provided decisive proof: at 700 °C, the stressed gauge reached 55.3% recrystallization with its dislocation density nearly halved, while the grip end, experiencing identical thermal exposure but no stress, recrystallized to only 32.4% and retained a dense dislocation network. Electron microscopy confirmed that the gauge transformed into fine, defect-free equiaxed grains, whereas the grip remained crowded with dislocations and twins. Applied stress, not thermal energy alone, is therefore the primary driving force that triggers rapid grain boundary migration.
The Future: Future work will extend the experiments to lower (400-500 °C) and higher (800-900 °C) temperatures to map the complete kinetic transition boundary across the homologous temperature scale. On the design side, the team proposes raising the grain boundary diffusion activation energy through additions of slow-diffusing refractory elements such as Mo, W, or Re, and engineering the grain boundary character distribution to increase the fraction of thermally stable, low-mobility special boundaries. The mechanistic framework also lays the foundation for multi-scale constitutive models that couple dislocation substructure evolution with grain boundary migration kinetics, enabling predictive deformation mechanism maps for alloy design.

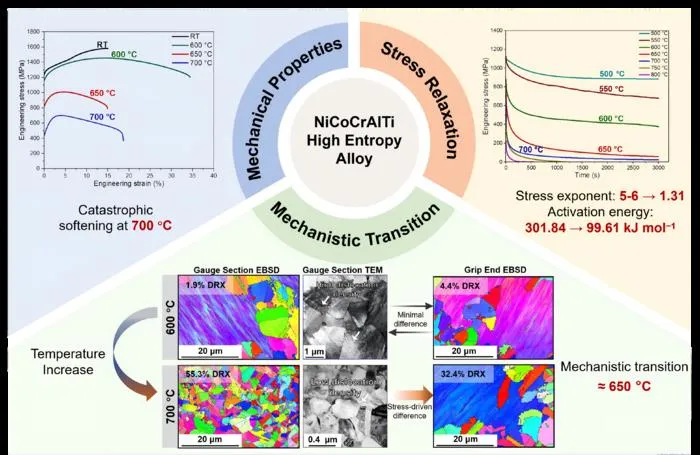

The graphical abstract summarizes this two-part story. The upper panel shows the mechanical signature: tensile curves in which the alloy retains 1450 MPa at 600 °C but drops to about 700 MPa at 700 °C, alongside stress-relaxation curves that accelerate by orders of magnitude above 650 °C. The lower panel presents the microstructural evidence: at 600 °C the gauge and grip microstructures are nearly identical, both retaining a high dislocation density, whereas at 700 °C the stressed gauge exhibits 55.3% dynamic recrystallization with a low dislocation density, in stark contrast to the grip end, proving that the transformation is stress-driven.
The Impact: This work provides, for the first time, a quantitative framework that deconvolutes stress-driven from thermally driven contributions to high-temperature softening in L1 2 -strengthened high-entropy alloys. By identifying grain boundary stability under stress as the primary performance-limiting factor, the study suggests that grain boundary engineering and tuning of recrystallization processes may outweigh precipitate coherency design for reliable elevated-temperature performance. The lessons learned are broadly applicable to the design of precipitation-strengthened alloys for service in demanding high-temperature environments such as aero-engines and advanced power-generation systems.
The research has been recently published in the online edition of Materials Futures, a prominent international journal in the field of interdisciplinary materials science research.
Citation: Danni Jiang, Yanxin Li, Meiling Liang, Yang Tong, Fanchao Meng, Yanfei Gao, Shuying Chen. Mechanistic transition into stress-activated dynamic recrystallization as the origin for catastrophic softening in precipitation-strengthened high-entropy alloys[J]. Materials Futures , 2026, 5(4): 045001. DOI: 10.1088/2752-5724/ae8e95
Materials Futures
Mechanistic transition into stress-activated dynamic recrystallization as the origin for catastrophic softening in precipitation-strengthened high-entropy alloys
11-Aug-2026
