Next-generation optical sensing, secure data transmission and infrared imaging technologies demand compact, low-energy polarization-sensitive photodetectors capable of operating across wide wavelength ranges. Low-symmetry two-dimensional (2D) layered materials stand out for their intrinsic optical anisotropy, yet their native polarization sensitivity is inherently limited by crystal symmetry. Heterostructure stacking offers a viable symmetry-engineering strategy to overcome this bottleneck and simultaneously realize self-powered operation via photovoltaic effects.
A cross-institutional research group led by Professor Congpu Mu (Yanshan University), Professor Kun Ye (Tiangong University), Professor Bingchao Yang (Qufu Normal University) and Professor Lixuan Liu (Tianjin University) has developed a novel vertical BP/Nb 2 SiTe 4 van der Waals heterojunction photodetector with combined ultrabroadband response, self-driven functionality and exceptional polarization selectivity. The team published their findings in the journal Nano Research on July 7, 2026.
Traditional polarization detectors often require external bias voltage, operate over limited wavebands, or produce low dichroic ratios that degrade imaging and encryption resolution. The new BP/Nb 2 SiTe 4 device addresses all these limitations through carefully designed material integration and interface engineering. Researchers mechanically exfoliated few-layer BP and Nb 2 SiTe 4 nanosheets, precisely aligned their crystal axes, and transferred them to form vertical heterostructures, followed by vacuum thermal annealing to optimize interfacial bonding. Advanced characterizations including atomic force microscopy, X-ray photoelectron spectroscopy, aberration-corrected scanning transmission electron microscopy and polarized Raman spectroscopy confirmed atomically clean, defect-free interfaces with strong interlayer coupling between the two low-symmetry materials.
Density functional theory calculations revealed that stacking BP and monoclinic Nb 2 SiTe 4 reduces overall lattice symmetry, generating highly directional charge redistribution and anisotropic light absorption. A pronounced built-in electric field emerges at the staggered type-II band alignment heterointerface, enabling spontaneous separation of photogenerated electron-hole pairs without external voltage supply.
“The BP/Nb 2 SiTe 4 heterostructure combines the complementary bandgaps of BP and Nb 2 SiTe 4 to unlock detection from 360 nm ultraviolet all the way to 2200 nm short-wave infrared, a spectral range highly valuable for industrial sensing, night vision and optical communication,” said Professor Kun Ye, corresponding author from Tiangong University. “The built-in potential eliminates power consumption during operation, a major advantage for portable and wearable optoelectronic systems.”

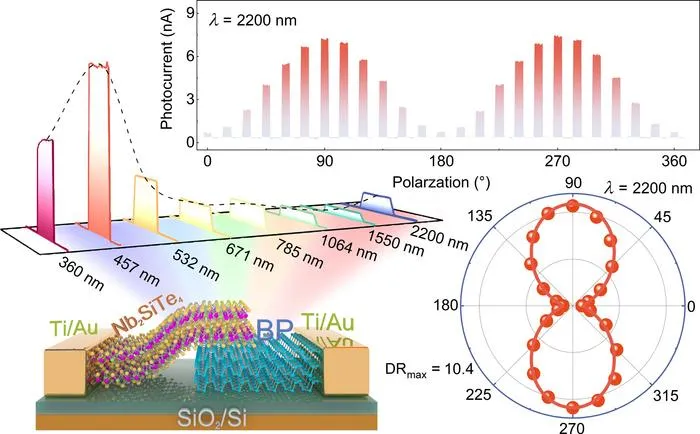

At zero bias, the heterostructure photodetector exhibits stable, fast photoresponse with rise and fall times of 24 ms and 13 ms, orders of magnitude faster than single-component Nb 2 SiTe 4 devices. Most notably, polarization-resolved photocurrent measurements show a record-high dichroic ratio of 10.4 under 2200 nm illumination, outperforming most previously reported 2D material and heterojunction polarization detectors across the broadband spectrum. Periodic photocurrent oscillations as the polarization angle rotates from 0° to 360° confirm robust anisotropic photoresponse across all tested wavelengths from UV to SWIR.
Beyond basic photodetection, the team validated two transformative application scenarios for the device: polarization-resolved single-pixel imaging and near-infrared polarization encoding/decryption. Conventional polarimetric cameras sacrifice spatial resolution by using multi-pixel polarization filters, while the BP/Nb 2 SiTe 4 detector captures full-resolution degree-of-linear-polarization images with a single pixel. Compared with non-polarized WS₂ reference devices, the heterostructure delivers drastically enhanced image contrast under both 532 nm and 2200 nm light, clearly distinguishing subtle polarization features of target objects.
For optical information security, the team designed a dual-wavelength encryption scheme utilizing contrasting polarization responses at 1550 nm and 2200 nm. At a polarization angle of 0°, signal overlap obscures image data; rotating the polarizer to 90° generates clear spectral contrast to fully decrypt hidden visual information. Convolutional neural network classification tests further prove the encryption efficacy: encrypted images achieve only ~45% recognition accuracy, while decrypted images recover over 92% classification accuracy.
“Our symmetry-broken BP/Nb 2 SiTe 4 heterostructure unifies three key performance merits: self-powered operation, ultra-wide spectral coverage and superior polarization anisotropy,” stated Professor Congpu Mu, lead researcher at Yanshan University. “This work establishes a scalable material strategy to build integrated multifunctional optoelectronic chips for low-power polarization imaging, secure infrared data encryption and miniature polarization sensors.”
The researchers outline multiple directions for follow-up development. Future work will focus on wafer-scale growth of BP/Nb 2 SiTe 4 heterostructures, optimizing dichroic ratios further via strain engineering, and integrating the detectors into on-chip polarization imaging arrays for commercial night vision and confidential optical communication hardware.
Co-authors of the study include Junxin Yan, Qian Li, Tianle Zeng, Qi Gao, Xueqi Guo, Yonghao Sun, Zhiyan Jia, Anmin Nie and Shouguo Wang from Yanshan University, Tiangong University, Anhui University, Shanxi College of Technology, Qufu Normal University and Tianjin University.
This research received financial support from the National Key Research and Development Program of China (2022YFA1204000), National Natural Science Foundation of China (52571229, 52571263, 52302192, U24A6002), Key Research and Development Program of Tianjin (24YFXTHZ00150), open project of State Key Laboratory of Metastable Materials Science and Technology (202508), Young Top-Notch Talent Program of Hebei Education Department (BJK2023082), and Fundamental Research Program of Shanxi Province (202403021222357).
DOI Link:
https://doi.org/10.26599/NR.2026.94908772
About Nano Research
Nano Research is a peer-reviewed, open access, international and interdisciplinary research journal, sponsored by Tsinghua University and the Chinese Chemical Society, published by Tsinghua University Press on the platform SciOpen. It publishes original high-quality research and significant review articles on all aspects of nanoscience and nanotechnology, ranging from basic aspects of the science of nanoscale materials to practical applications of such materials. After 18 years of development, it has become one of the most influential academic journals in the nano field. Nano Research has published more than 1,000 papers every year from 2022, with its cumulative count surpassing 8,000 articles. In 2025 InCites Journal Citation Reports, its 2025 IF is 9.4 (8.3, 5 years), and it continues to be the Q1 area among the four subject classifications. Nano Research Award, established by Nano Research together with TUP and Springer Nature in 2013, and Nano Research Young Innovators (NR45) Awards, established by Nano Research in 2018, have become international academic awards with global influence.
Nano Research
Self-Powered Ultrabroadband BP/Nb₂SiTe₄ Heterostructure Photodetector Delivers Record Polarization Sensitivity for Infrared Encryption and Polarimetric Imaging
7-Jul-2026
