Localized pitting corrosion can cause sudden failure in aluminum components even when overall corrosion rates are low. Steam coating offers a water-vapor-based route to protective boehmite films, but processing simultaneously changes film thickness, surface morphology, crystallinity, and substrate defects. These intertwined changes make it difficult to determine which physical features govern corrosion resistance and how coatings should be optimized.

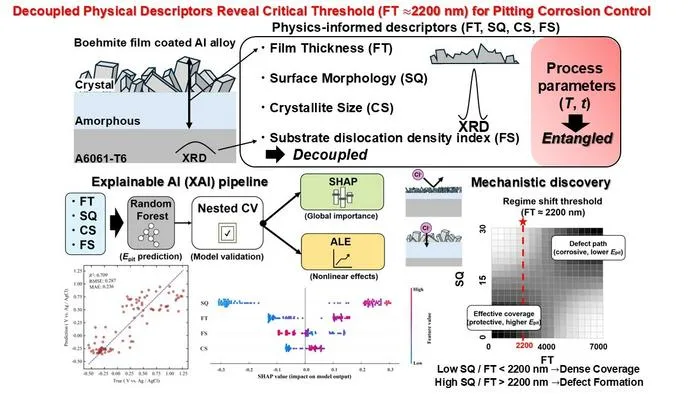

Addressing this challenge, a research team led by Professor Takahiro Ishizaki and Master's student Kei Masuhara from Shibaura Institute of Technology (SIT), Japan, used an interpretable machine-learning framework to examine 90 steam-coated A6061-T6 aluminum specimens. Four descriptors—film thickness (FT), surface morphology (SQ), crystallite size (CS), and substrate dislocation density index—were analyzed using Random Forest, Shapley Additive Explanations, and Accumulated Local Effects. Their findings were published online in the journal npj Materials Degradation on August 18, 2026.
The researchers assessed pitting resistance by measuring the pitting potential—the voltage at which localized corrosion begins—in a 5 wt.% sodium chloride solution at room temperature. Higher values indicate greater resistance to pitting under these test conditions. Surface morphology was quantified as the root-mean-square surface height, a measure of surface roughness denoted as SQ.
“We wanted to understand which features of the coating most strongly affect its ability to prevent pitting corrosion ,” says Prof. Ishizaki. “ Our analysis showed that the importance of these features changes as the coating grows.” The machine-learning model predicted corrosion resistance more accurately than a model based only on coating temperature and treatment time.
The analysis identified surface roughness and film thickness as the leading descriptors in the model. For specimens with SQ values of approximately 600–1,080 nm, the modeled interaction between roughness and thickness changed from positive to negative near a film thickness of 2,200 nm. This reversal concerns the interaction between the two descriptors, rather than the overall corrosion resistance of every coating above or below that thickness. The same reversal was not observed in the lower-roughness range.
The researchers interpret this pattern as a possible change in what surface roughness represents during film growth. In thinner coatings, roughness may reflect the development of protective coverage. In thicker coatings, it may instead be associated with structural irregularities that provide pathways for corrosive species. These interpretations remain hypotheses requiring further experimental testing. The analysis also identified a region-dependent interaction between surface roughness and CS, suggesting that their combination matters more than a simple “larger is better” rule.
These findings suggest directions for optimizing water-vapor-based protective coatings on lightweight aluminum alloys. Considering film thickness and surface roughness together could help guide future coating development. The descriptors were obtained using X-ray diffraction, confocal laser scanning microscopy, and cross-sectional electron microscopy. With further validation, such measurements could support data-driven coating assessment and quality control.
“The key insight is that higher roughness should not automatically be considered beneficial or harmful,” says Prof. Ishizaki. “ Its meaning depends on the film-growth regime. Our model suggests a change near 2,200 nm within the higher-roughness range examined. This shows why coating design needs to consider how physical features interact. ” A Monte Carlo analysis estimated that uncertainty in descriptor measurements contributed approximately 0.080 V to prediction variability, compared with an overall model RMSE of 0.292 V. This suggests that measurement uncertainty alone cannot explain the remaining prediction error.
Overall, the study demonstrates how interpretable machine learning can reveal physically meaningful regime changes in complex coating systems rather than simply predicting corrosion behavior. The identified SQ–FT transition and other region-dependent interactions provide model-supported hypotheses for future experimental validation, and may offer a transferable strategy for other interface-controlled materials, including environmental barrier coatings and battery interphases.
***
Reference
Title of original paper: Interpretable machine learning reveals a morphological regime shift governing pitting resistance in steam-coated boehmite films
Journal: npj Materials Degradation
DOI: 10.1038/s41529-026-00862-0
