The challenge: finding the signal in the noise
When two materials meet—a liquid against air, a catalyst and a reactant, an electrode and an electrolyte—the action happens at the interface. But these interfacial layers are extremely thin, typically just 1 to 3 molecules thick, making them notoriously difficult to study.
A technique called sum frequency generation (SFG) vibrational spectroscopy has long been used to probe surfaces. It works by shining two light beams on a surface; where they overlap, they generate a new beam carrying information about the molecules present. But the intrinsic SFG signal from surfaces is inherently weak. To address this, researchers have long used quartz crystal as a substrate, leveraging its non-resonant response to generate interference that amplifies the target molecular signal. Using alternative crystals with a far more stonger non-resonant SFG response can boost these surface molecular signals even further.
"Boosting SFG signals this way is like trying to hear a whisper at a rock concert," said Professor Zefeng Ren, who led the research. "The background signal from the substrate overwhelms the molecular information we're trying to measure."
Amplifying the whisper, turning down the noise
The team previously developed a technique called post-optical parametric amplification (post-OPA) that could boost weak SFG signals. But it required separate measurements of reference and sample, making it vulnerable to light source fluctuations and difficult to use reliably.

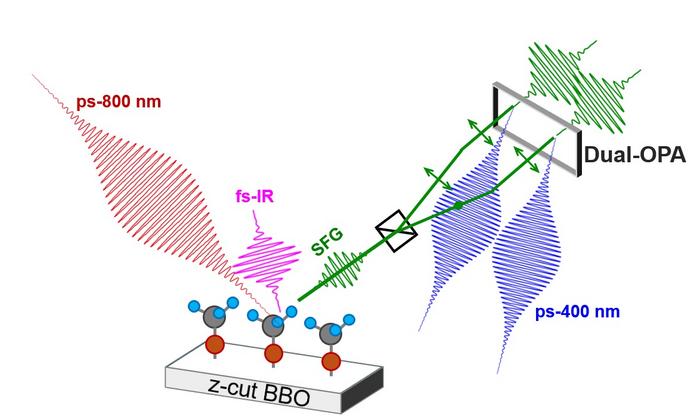

Now, they've solved this problem with a novel approach called post-dual OPA. One key innovation is using a specialized β-barium borate (BBO) crystal as the sample substrate, replacing conventional quartz crystal and delivering a far stronger non-resonant SFG response. This crystal generates two SFG signals with orthogonal polarizations—one serves as the molecular signal, the other as an internal reference. Both are amplified simultaneously in the same optical setup and detected on the same camera, cancelling out noise from light fluctuations.
Tuning in time for better contrast
The breakthrough comes from exploiting a subtle timing effect. The unwanted background signal from the crystal is ultrashort (femtoseconds), while the desired molecular signal lasts longer (picoseconds)—like the difference between a flash and a glow.
By carefully adjusting the timing between the signal and the pump light pulse in the amplifier, the researchers can selectively amplify the longer-lived molecular signal while giving the short-lived background a far lower amplification gain. This effectively turns down the "static" to hear the molecular "voice" more clearly.
Dramatic improvement demonstrated

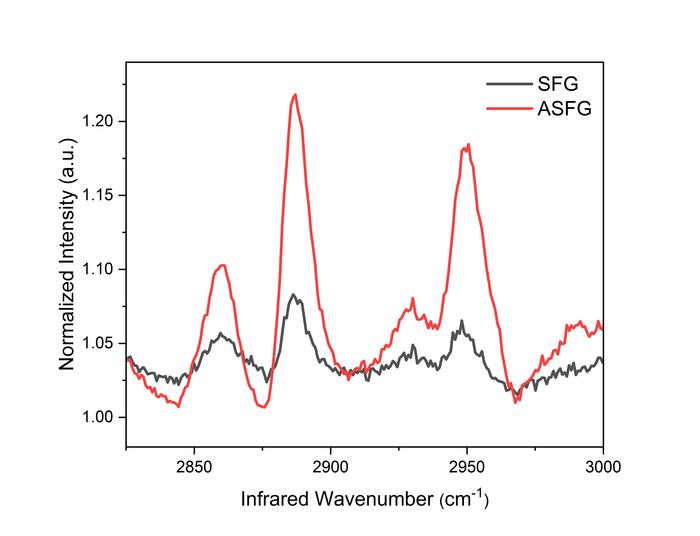

Tests on methoxy groups (a common surface intermediate formed from methanol) showed striking results. By optimizing the timing delay, the team achieved:
The technique also solved the normalization problem of conventional post-OPA, making measurements more reliable and reproducible.
Why it matters
This technique opens new possibilities for studying:
"By selectively amplifying the signal we want while suppressing the background we don't, we can now see molecular details that were previously hidden," said Ren. "This is particularly important for studying transient species in chemical reactions—the intermediates that appear and disappear in fractions of a second."
What's next
The team plans to combine this technique with high-speed detectors for even faster measurements and real-time studies of surface reactions. They also see potential applications in studying battery interfaces, biological membranes, and other systems where surface molecular structure determines function.
Experimental study
