Water is one of the most essential components of life and many of its unique properties arise from interactions between its molecules. Hydrogen bonds influence water’s physical properties, contribute to the formation of ice crystals, and are crucial for normal biological processes. Understanding these interactions is fundamental to chemistry, physics, and biology. However, because molecular interactions take place at a scale that cannot be directly observed, students may struggle to visualize how individual molecules connect and organize into larger structures.
Traditional molecular models help students understand the arrangement of atoms within molecules, but most often they cannot demonstrate how separate molecules interact. Although magnetic models have previously been developed to represent intermolecular interactions, there exists an opportunity to use them more extensively to explore the structural properties of water through guided classroom activities. Recognizing this challenge, researchers sought to make chemistry more intuitive through physical exploration rather than relying exclusively on textbooks and static illustrations.
In an effort to help students better understand these interactions, a researcher team led by Professor Jiro Kondo, Department of Materials and Life Sciences, Faculty of Science and Technology, Sophia University, developed WaterPuzzle, a magnetic molecular model designed to help students investigate hydrogen bonding and molecular interactions in water.
The study was available online on September 30, 2026, and published in Volume 103 of The Journal of Chemical Education on October 13, 2026, and was co-authored by Yuna Ohtani (Graduate School of Science and Technology, Sophia University), Tania Guadalupe Peñaflor Galindo (Department of Materials and Life Sciences, Sophia University), and Shota Nakamura (StudioMIDAS Inc.).
In Kondo’s words, “ Our motivation came from observing that many students struggle to understand chemistry’s underlying principles or fully appreciate the subject through conventional teaching methods. We believe that a more intuitive understanding of the laws of nature could help students develop a stronger affinity for chemistry .”

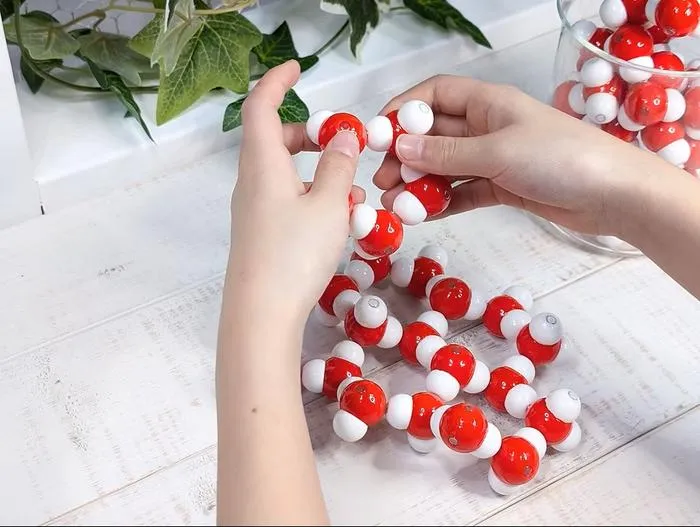

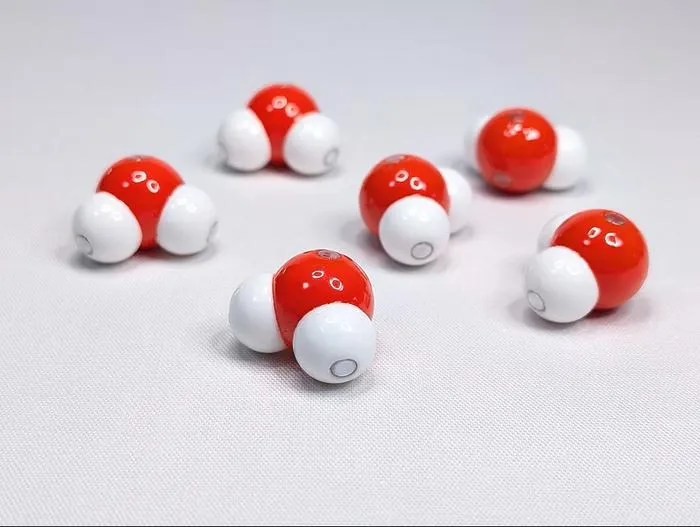

WaterPuzzle consists of 3D-printed water molecule models attached using small neodymium magnets. The magnetic sites represent hydrogen-bond donors and acceptors, with attractive and repulsive forces guiding the pieces towards hydrogen-bond-like arrangements. The researchers developed structured educational activities in which students assemble molecules, construct hydrogen-bond networks, and explore molecular geometry and crystal structures. The STL files required to print the models are provided free of charge, allowing educators to easily fabricate them using commonly available 3D printers.

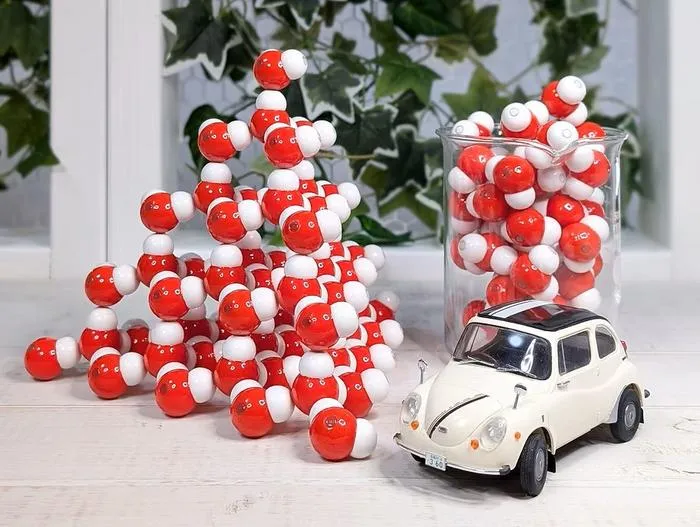

These activities allow students to explore the tetrahedral arrangement of hydrogen-bonding sites around water molecules and construct the hexagonal networks characteristic of Ice I h , which is the most common crystalline form of ice under atmospheric conditions. By stacking hexagonal rings, they can investigate how ice forms an open framework that forms the basis for its lower density compared with liquid water. Students can also explore other ice structures, including Ice I c , Ice II, Ice III, and Ice XVII. Further, combining WaterPuzzle with the previously developed BasePairPuzzle model allows students to understand how water interacts with nucleobases and forms hydration shells around biological molecules.
While WaterPuzzle primarily helps in practically understanding molecular structures, it also acts as a tool for educators to encourage active learning and scientific inquiry. Its easy-to-use design could promote active learning and scientific inquiry. Its accessible design could help make complex concepts easier to explore, while free printing files support wider classroom adoption.
WaterPuzzle offers a hands-on approach to making chemistry more intuitive, accessible, and enjoyable. By allowing students to physically construct and investigate molecular networks, the activity could help them develop a deeper appreciation of the molecular interactions that shape the natural world and contribute to stronger chemical literacy.
Reference
Title of original paper:
WaterPuzzle: An Educational Activity Using a 3D-Printable Magnetic
Molecular Model to Explore Hydrogen Bonding, Ice Crystals, and
Hydration of Molecules
Journal:
The Journal of Chemical Education
DOI:
Authors:
Yuna Ohtani 1 , Konatsu Kondo 2 , Shota Nakamura 3 , Tania Guadalupe Peñaflor Galindo 1 , and Jiro Kondo 1 *
Affiliations:
1 Department of Materials and Life Sciences, Faculty of Science and Technology, Sophia University, Japan
2 Independent Researcher, Japan
3 StudioMIDAS Inc., Saitama, Japan
