All-solid-state lithium-sulfur batteries can suppress the troublesome polysulfide shuttle while retaining the high theoretical energy density of sulfur, making them promising candidates for next-generation high-energy batteries. However, solid-state sulfur redox kinetics remain sluggish because reactions are confined to sparse triple-phase boundaries, while inadequate carrier transport pathways further limit sulfur utilization.
Transition-metal sulfides have therefore attracted considerable attention as catalysts for accelerating sulfur reactions. But a fundamental question remains largely unexplored: how do these catalysts evolve and degrade during electrochemical cycling?
Now, a research team led by Professors Yong Yang and Ming-Sheng Wang at Xiamen University has investigated how commonly used transition metal sulfide catalysts evolve during electrochemical cycling in all-solid-state lithium-sulfur batteries. Rather than starting with a new catalyst material, the researchers first sought to understand why existing catalysts lose their effectiveness.

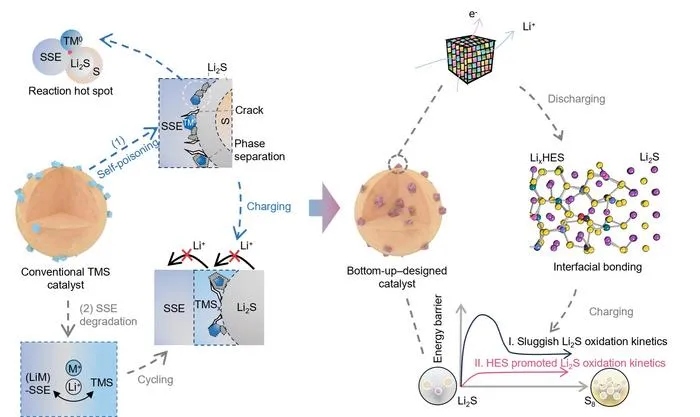

In this work, they identified two representative failure pathways. In one case, electrochemical conversion causes severe phase separation, breaking the catalyst into spatially separated products and leading to catalyst self-poisoning. In another, transition-metal species migrate from the catalyst into the surrounding solid electrolyte, accelerating electrolyte degradation.
These findings disclose that high catalytic activity alone is not sufficient for solid-state batteries. An effective catalyst must also preserve its structure, suppress unwanted atomic migration and maintain continuous pathways for ions and electrons throughout cycling.
Guided by these failure mechanisms, the researchers adopted a high-entropy strategy to construct a multicomponent solid-solution catalyst. High configurational entropy improves the stability of the solid-solution phase against phase separation, while sluggish diffusion helps hinder long-range transition-metal migration.
The resulting high-entropy sulfide (HES) undergoes solid-solution activation to form a stable Li x HES phase, avoiding the phase separation and large-scale atomic reconstruction typically associated with conversion reactions.
But stability is only part of the story. During electrochemical operation, the catalyst evolves into a stable Li x HES phase that facilitates sulfur conversion in two complementary ways. First, by conducting both lithium ions and electrons, Li x HES expands the reaction zone beyond conventional triple-phase boundaries. Second, it acts as an interfacial redox mediator, with Li-deficient Li x HES spontaneously promoting Li 2 S oxidation during charging.
With only 3 weight percent catalyst in the composite cathode, a cathode containing 40 weight percent sulfur achieved 93.4 percent sulfur utilization and 93.0 percent conversion efficiency. The system also maintained strong performance at higher sulfur contents, high sulfur loadings and high cycling rates. In a full cell paired with a lithium-silicon anode, the researchers demonstrated a gravimetric energy density of 571 watt-hours per kilogram based on the total electrode mass.
More broadly, the study proposes a failure-mechanism-guided approach to catalyst design: first understand how a catalyst changes and fails under real operating conditions, and then design the structural disorder, atomic stability and carrier-transport pathways needed to prevent that failure.
The work also points to unresolved questions in all-solid-state sulfur chemistry. How do different transition-metal ions affect sulfide solid electrolytes? And in the absence of a liquid medium, what is the actual pathway through which sulfur conversion initiates and propagates?
Answering these questions may be essential for moving beyond performance-oriented materials development toward a deeper understanding of the chemistry that governs all-solid-state lithium-sulfur batteries.
National Science Review
Experimental study
