According to a paper published in Nano Letters recently, a research team led by Prof. WU Zhikun from the Institute of Solid State, Hefei Institutes of Physical Science (HFIPS) of the Chinese Academy of Sciences (CAS) obtained reduced Pd-based alloy nanoclusters (abbreviated as Au 4 Pd 6 and Au 3 AgPd 6 ) for the first time.
The Au 3 AgPd 6 is the smallest tri-metal alloy nanocluster with well-defined composition/structure so far.
Catalysis is closely related to surface. For metal catalysts, increasing the proportion of surface atoms can improve the utilization efficiencies of metals, which is particularly important for noble metal catalysts such as gold and platinum. Thus, reducing the number of kernel atoms in metal nanocluster is expected to improve the metal utilization efficiency, and an extreme case is to reduce the kernel atom number to only one. However, the synthesis of single-atom-kernelled nanocluster is difficult, especially when the kernel atoms are relatively active metal atom such as Ag and Cu due to the stability issue.
It is well known that alloying can not only improve the catalytic performance of clusters, but also stabilize them. A large number of alloy nanoclusters with group 11 metal (Au, Ag, Cu) as the main body have been reported, but the alloy nanoclusters with reduced Pd as the main body have not been mentioned, mainly because Pd and thiolate can easily form a +2 charged crown-like structure, which is very stable and difficult to be reduced. In order to avoid the formation of crown-like structure, some special procedures must be adopted, such as the procedure of increasing steric hindrance of thiolate. On the other hand, the stability endows Pd-thiolate complex with the ability to protect the single atom kernel as a shell, which inspires our enthusiasm for the synthesis investigation. Unfortunately, Pd-based nanoclusters with a single silver atom kernel have not been obtained by the traditional mixed metal salt co-reduction method.
The recently proposed anti-galvanic reduction (AGR) provided a novel solution: the co-reduction method can be first used to synthesize Au-Pd cluster with a single gold atom kernel, then AGR is used to replace the kernel gold atom with Ag atom.

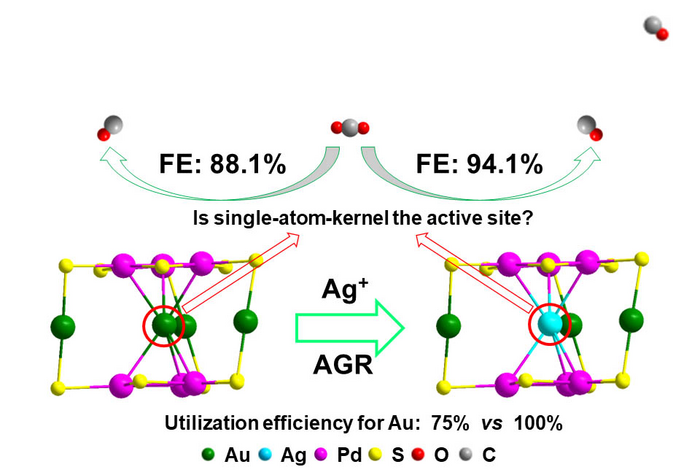

In this research, scientists chose the CO 2 electroreduction as the model reaction to investigate the catalytic performance of the as-obtained alloy nanoclusters due to its significance. The results showed that Au 3 AgPd 6 had better catalytic activity and selectivity than Au4Pd6 (the Faraday efficiency of CO 2 to CO is 94.1% and 88.1%, respectively), which indicated that AGR can not only improve the catalytic performance, but also improve the utilization efficiency of gold (100%) and reduce the cost of the catalyst. Compared with the previous Au 47 Cd 2 obtained by two-phase AGR method, the mass activity of the as-obtained Au3AgPd6 was also higher (55.6 and 266.7 mA mg -1 , respectively).
Further experiments manifested that the kernel atom is not the active site of the reaction, but can change the catalytic and other properties by tuning the electronic structure of the nanocluster, which provides a reference for regulating the performance of the cluster.
"This work is important for further research,” said Prof. WU, “we put forward the strategy for the meal utilization efficiency improvement, and proposed the concept of ‘sing-atom-kernelled nanocluster catalyst’."
They obtained reduced Pd-based alloy nanoclusters for the first time and the smallest tri-metal alloy nanoclusters, which deepened the understanding of cluster active sites, and provided guidance for subsequent research and applications.
Nano Letters
Single-Atom-Kernelled Nanocluster Catalyst
22-Aug-2022
