To date, about 90 % of fish resources worldwide have already reached their sustainable fishery limit. Meanwhile, intensive farming and aquaculture contribute to significant environmental pollution and degradation. To address both the challenges of limited production efficiency and environmental harm, plant-based fish alternatives have emerged as a potential solution to traditional fisheries.
In a recent study published in the KeAi journal Food Physics , a team of researchers from China successfully created plant-based simulated yellow croaker meat tissues by dual-nozzle 3D printing.
Based on micro-CT scanning data, a muscle/fat biphasic high-simulation model for 3D printing yellow croaker meat in three parts (the dorsal, the base of the belly flesh, and the tail) was constructed via CAD reconstruction,” explains Enbo Xu, senior and corresponding author of the study. “We used soy protein isolate–xanthan gum-starch complex as simulated muscle ink and nanostarch-carrageenan emulsion gel as simulated fat ink.
After the completion of a series of immersion treatments, the fish were stained with an iodine solution, with the aim of distinguishing the distribution of fat and muscle. Nonetheless, there was the challenge of adjusting the parameters of multi-nozzle 3D printing to achieve high precision.

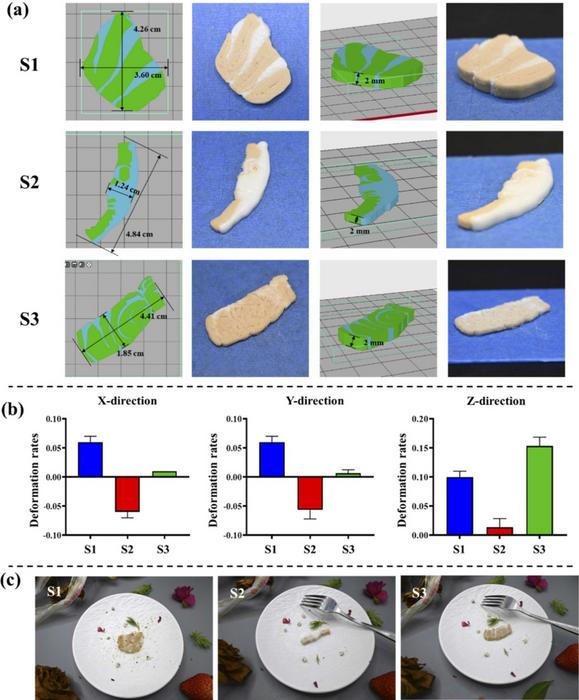

“We optimized the printing process by controlling the dual-nozzle printing process parameters, including manual calibration of the dual-nozzle offset, layer height, fill rate, printing speed, air pressure, etc.,” shares lead author Jie Li. “Ultimately, a dual-nozzle 3D-printed product of plant-based fish flesh was successfully created, with a printing accuracy of more than 90% for the composite structure.”
The texture, moisture distribution and nutrient content of the simulated fish meat were analyzed and compared with real yellow croaker meat. The team reported that the texture characteristics, moisture distribution and content of many nutrients in the simulated fish were close to those of real fish.
###
Contact the author: Enbo Xu, College of Biosystems Engineering and Food Science, National Engineering Laboratory of Intelligent Food Technology and Equipment, the State Key Laboratory of Fluid Power and Mechatronic Systems, Zhejiang Key Laboratory for Agro-Food Processing, Fuli Institute of Food Science, Zhejiang University, Hangzhou 310058, China. enbo_xu@163.com
The publisher KeAi was established by Elsevier and China Science Publishing & Media Ltd to unfold quality research globally. In 2013, our focus shifted to open access publishing. We now proudly publish more than 100 world-class, open access, English language journals, spanning all scientific disciplines. Many of these are titles we publish in partnership with prestigious societies and academic institutions, such as the National Natural Science Foundation of China (NSFC).
Food Physics
Experimental study
Not applicable
Simulated construction of plant-based fish meat with composite structure via dual-nozzle extrusion 3D printing.
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
