Solid-state batteries represent the next frontier in energy storage technology, promising higher energy density and enhanced safety than conventional lithium-ion batteries. However, a persistent challenge has hindered their commercialization: the unstable interface between lithium metal anodes and solid electrolytes. Researchers have now developed an innovative solution using a Li x Ag alloy that could finally unlock the full potential of all-solid-state lithium metal batteries (ASSLMBs).
The research team from the Huazhong University of Science and Technology has successfully engineered a mixed ion-electron conducting (MIEC) Li x Ag alloy anode that addresses the critical interface issues plaguing garnet-type solid electrolytes. These electrolytes, specifically Li 6.5 La 3 Zr 1.5 Ta 0.6 O 12 (LLZTO), have shown tremendous promise but have been limited by poor lithium diffusion kinetics and vulnerability to lithium dendrite formation.
"What makes this approach revolutionary is how it fundamentally changes lithium ion movement at the critical interface," explains the research team. "The Li x Ag alloy creates a pathway for lithium ions that dramatically enhances diffusion kinetics, preventing the concentration gradients that typically lead to dendrite formation and interface degradation."
The results show that symmetric cells utilizing the Li x Ag alloy demonstrated exceptional stability for approximately 1,200 hours at a current density of 0.2 mA/cm², far exceeding the performance of conventional lithium metal anodes. The interfacial resistance between the LLZTO electrolyte and the Li x Ag anode was measured at just 2.5 Ω·cm², an ultralow value that facilitates efficient ion transport across the critical interface. This dramatic reduction in interfacial resistance enables both higher power output and improved energy efficiency.
The researchers discovered that the Li x Ag alloy's effectiveness stems from its unique physical properties: a low eutectic point and high mutual solubility with lithium. These characteristics create a "soft lattice" that maintains high lithium diffusion rates even as the composition changes during battery cycling.

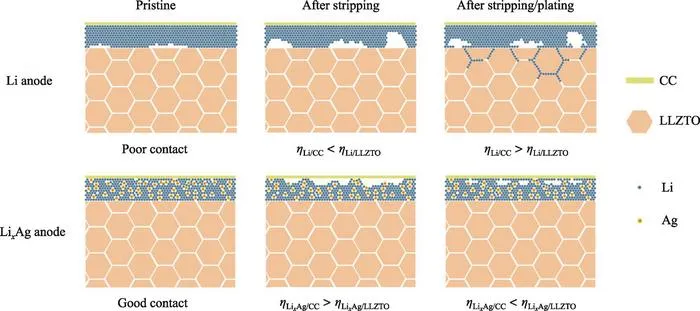

Most significantly, the team observed that lithium stripping and plating preferentially occur at the Li x Ag/current collector interface rather than at the LLZTO/Li x Ag interface. This phenomenon effectively protects the critical electrolyte-anode interface from contact loss during cycling, a common failure mechanism in solid-state batteries.
Full cells constructed with LiFePO 4 cathodes, LLZTO electrolytes, and Li x Ag anodes demonstrated excellent cycling stability and rate performance, confirming the practical viability of this approach for commercial applications. The technology could enable the next generation of electric vehicles with longer ranges, faster charging capabilities, and enhanced safety profiles.
Looking forward, the researchers suggest that their findings provide a blueprint for selecting other alloy phases for anode materials in garnet-based solid-state batteries. Alloys with low eutectic temperatures and high mutual solubility with lithium should be prioritized in future research efforts.
By solving the interface stability issue while enhancing lithium diffusion kinetics, the Li x Ag alloy anode brings us one step closer to a future where solid-state batteries power everything from smartphones to electric vehicles with unprecedented energy density and safety. This innovation could accelerate the transition to sustainable energy systems by enabling more efficient energy storage solutions across multiple applications.
Reference
Author: Anran Cheng a b, Pei Gao d , Ruxing Wang c , Kangli Wang a , Kai Jiang a
Title of original paper: Mixed ion-electron conducting LixAg alloy anode enabling stable Li plating/stripping in solid-state batteries via enhanced Li diffusion kinetic
Article link: https://doi.org/10.1016/j.geits.2024.100179
Journal: Green Energy and Intelligent Transportation
https://www.sciencedirect.com/science/article/pii/S2773153724000318
DOI: 10.1016/j.geits.2024.100179
Affiliations:
a State Key Laboratory of Advanced Electromagnetic Engineering and Technology, School of Electrical and Electronic Engineering, Huazhong University of Science and Technology, Wuhan, Hubei, 430074, China
b School of Materials Science and Engineering, Huazhong University of Science and Technology, Wuhan, Hubei, 430074, China
c Hubei Collaborative Innovation Center for High-efficiency Utilization of Solar Energy, Hubei University of Technology, Wuhan, 430068, China
d Chemistry Department, Eastern Kentucky University, 521 Lancaster Ave., Richmond, KY, 40513, USA
Green Energy and Intelligent Transportation
Experimental study
Not applicable
Mixed ion-electron conducting LixAg alloy anode enabling stable Li plating/stripping in solid-state batteries via enhanced Li diffusion kinetic
8-Jan-2025
