As the demand for energy-efficient cooling technologies continues to grow, the limitations of conventional water-based systems in terms of weight burden, structural instability, and high energy consumption become more pronounced. Now, researchers from the Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, led by Professor Jin Wang, have presented a breakthrough strategy for developing ultra-lightweight water materials that retain water's inherent thermal advantages while overcoming its density constraints. This work offers valuable insights into the development of next-generation lightweight, portable, and sustainable thermal management materials.
Why Lightweight Water Materials Matter
· Energy Efficiency: Lightweight water materials enable passive thermal management without energy-intensive active cooling systems, addressing the "energy consumption" barrier in conventional air conditioning.
· Portability and Adaptability: By achieving record-low density (0.041 g cm −3 ) while maintaining high water content, these materials overcome the "weight burden" limitation that restricts conventional hydrogels in wearable devices and aerospace applications.
· Sustainability: Reconfiguring water into a solid-state, structurally stable form transforms it from a passive fluid into a functional engineered material, enabling sustainable cooling solutions for global warming and urban heat island mitigation.
Innovative Design and Features

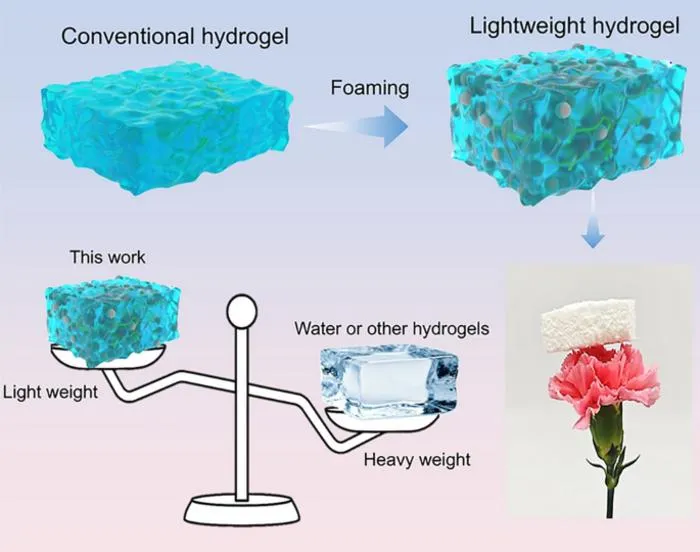

· Hollow Microsphere Incorporation: The hydrogel incorporates hollow foaming microspheres into a poly(N-isopropylacrylamide) (PNIPAM) matrix, creating sealed air pockets that serve as highly effective thermal barriers while maintaining structural integrity.
· Tunable Density and Water Content: By systematically controlling synthesis temperature, microsphere loading, and water content, the density can be adjusted from 0.041 to 0.532 g cm −3 with water contents ranging from 52.7% to 92.6%.
· Synergistic Thermal Mechanisms: The closed-cell architecture suppresses convective heat transfer, while retained water provides evaporative cooling and high infrared emissivity, enabling multifunctional thermal regulation.
Exceptional Physical and Thermal Properties
· Record-Low Density: The optimized hydrogel (LWM80-8-10) achieves a density of 0.041 g cm −3 —an order of magnitude lower than conventional hydrogels—while maintaining 52.7 wt% water content, enabling buoyancy on both water and n-hexane for over 12 hours.
· Enhanced Mechanical Robustness: The microsphere-reinforced network exhibits compressive stress of 164–300 kPa at 80% strain, representing over two orders of magnitude improvement compared to pure PNIPAM hydrogel (3 kPa), with recovery ratios approaching 80% after 100 compression cycles.
· Ultra-Low Thermal Conductivity: The sealed air pockets yield thermal conductivity of only 0.034–0.039 W m −1 K −1 , comparable to or lower than silica aerogels, enabling temperature differentials exceeding 50°C in hot-stage tests.
Passive Cooling Performance and Applications
· Superior Thermal Insulation: In standardized hot plate experiments at 80°C, the hydrogel achieves equilibrium temperature differences of 47.6–51.4°C, outperforming commercial expandable polystyrene (EPS) by approximately 7°C due to combined structural insulation and evaporative cooling effects.
· Sub-Ambient Radiative Cooling: The hydrogel exhibits high solar reflectance (0.94) and infrared emittance (0.84), enabling sub-ambient cooling of up to 10.8°C in outdoor experiments under direct sunlight, with sustained performance even in unsealed, natural convection environments.
Environmental Resilience: The system maintains stable performance across broad temperature ranges, with suppressed water loss due to microsphere-induced barriers, ensuring prolonged thermal management capability.
Mechanistic Insights and Future Outlook
· Dual Cooling Mechanism: Quantitative analysis reveals that thermal insulation accounts for 82.6% of total cooling performance, while evaporative cooling contributes 17.4%, demonstrating the dominant role of the closed-cell architecture combined with moisture-assisted temperature regulation.
· Scalable Fabrication: The synthesis employs mild, enzyme-compatible free-radical polymerization conditions, with successful demonstration of uniform large-scale samples, underscoring strong potential for industrial production.
· Challenges and Opportunities: Future research will focus on optimizing synthesis routes for specific applications, exploring alternative polymer matrices, and extending this lightweight water material concept to other functional domains such as energy storage and soft robotics.
This comprehensive study establishes a practical realization of lightweight water materials that integrate ultra-low density, mechanical integrity, and advanced thermal management. It highlights the importance of interdisciplinary research in materials science, thermal engineering, and sustainable design to drive innovation in energy-efficient cooling technologies. Stay tuned for more groundbreaking work from Professor Jin Wang at the Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences!
Nano-Micro Letters
News article
Ultra‑Light Poly(N‑isopropylacrylamide) Hydrogels: Light Weight Water Materials for Passive Thermal Management via Insulation and Cooling
28-Jan-2026
