Recently, Prof. ZOU Liangjian’s group from the Hefei Institutes of Physical Science (HFIPS), Chinese Academy of Sciences (CAS), investigated the magnetic phase diagram of the high-TC superconducting compound Ba 2 CuO 4-δ and its superconducting pairing symmetry based on the spin-fluctuation mechanism.
These results were published in Physical Review B .

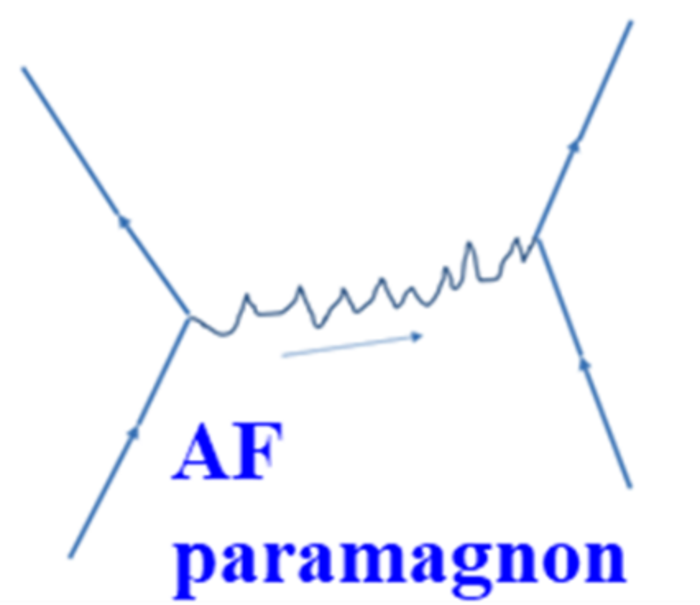

It is well-known that two electrons in vacuum repulse each other. However, in superconductors, two electrons near the Fermi surface form a Cooper pair by exchanging bosonic quasi-particles. These Cooper pairs with the same phase condensate the superfluid which has zero resistivity. The pairing symmetry of Cooper pairs is an important feature for uncovering the effective pairing interaction in a superconductor.
A newly-discovered cuprate superconductor Ba 2 CuO 4-δ featured on high-Tc of 73 K, about 2 to 3 times higher than isostructural conventional cuprate La 2 CuO 4-δ . Also, it displayed compressed CuO 6 octahedra, which were inverted to the CuO 6 octahedra or CuO 5 pyramids in the parent phases of conventional cuprates. This led to more than one orbital contributing to superconducting properties in Ba 2 CuO 4-δ . The phase diagrams of the previous cuprates superconductors showed antiferromagnetism in close proximity, or in some cases coexisting, with superconductivity. Hence, it is proposed that the effective pairing interaction is mediated by spin fluctuation in the cuprates superconductors. To understand which mechanism contributes the effective pairing interaction in Ba 2 CuO 4-δ , it is crucial to investigate the magnetic phase diagram of it.
In this work, by using the rotationally invariant slave boson (RISB) method, researchers investigated the magnetic phase diagram of the high-TC superconducting compound Ba 2 CuO 4-δ . They also studied the superconducting pairing symmetry in its based on the spin-fluctuation mechanism within random phase approximation (RPA).
The results obtained by the RISB method showed that in the intermediate correlation regime (U ~ 2 eV), the system behaved as single-band paramagnetic metal when n > 2.4, and had only one antiferromagnetic insulating parent phase.
In the strongly correlated regime (U > 4 eV) the system displayed two different antiferromagnetic insulating parent phases at n = 2 and 3, corresponding to two-band and single-band nature, respectively. Comparing the experimental spin coupling value of about 150 meV with the total-energy difference between the Néel antiferromagnetic and paramagnetic phases, researchers estimated that U ≈ 2~3 eV in Ba 2 CuO 3.2 .

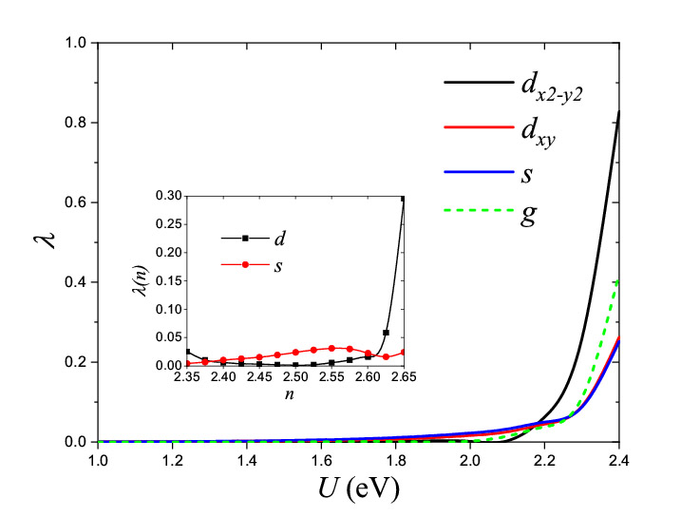

Researchers further studied the superconducting pairing symmetry in its based on the spin-fluctuation mechanism and found that the pairing strengths of s-wave and d-wave are nearly degenerate.
This suggests that Cooper pairs in Ba 2 CuO 3.2 are s+d –wave symmetric.
It’s the first time that scientists theoretically illustrated the magnetic phase diagram of Ba 2 CuO 4-δ , which suggested that Cooper pairs in Ba 2 CuO 3.2 were s+d –wave symmetric provided that the effective pairing interaction is mediated by spin fluctuations.
Physical Review B
Band crossover and magnetic phase diagram of the high- T c superconducting compound Ba 2 CuO 4 − δ
27-Apr-2022
