Scintillation detectors are widely used in radiation monitoring, medical imaging, security screening and industrial inspection. A new review published in AI & Materials highlights that detector performance depends not only on scintillator materials and photodetectors, but also on how each optical component is assembled. The study provides a system-level roadmap for improving light collection efficiency through geometry design, surface treatment, reflectors, optical coupling, photodetector matching and AI-assisted optimization.
Scintillation detectors are essential tools for detecting ionizing radiation. They are used in areas ranging from nuclear radiation monitoring and medical imaging to homeland security and industrial non-destructive testing. Their working principle is simple in concept: when high-energy radiation enters a scintillator, the material emits tiny flashes of light, which are then converted into electrical signals by a photodetector.
However, in practical devices, generating light is only the first step. A large fraction of scintillation photons can be lost before they ever reach the detector. Some photons are trapped inside the crystal by total internal reflection. Some are absorbed during long optical paths. Others escape through side surfaces, are reflected inefficiently, or miss the sensitive area of the photodetector. These losses directly affect the strength and quality of the final signal.
In a new review article, researchers from North China Electric Power University systematically examine this often-overlooked problem from the perspective of light collection efficiency, or LCE. Instead of focusing only on new scintillator materials or more sensitive photodetectors, the review emphasizes the importance of the entire optical chain between them.
“Improving a scintillation detector is not only a matter of choosing a brighter crystal or a better photodetector,” says Yuze Hua, first author of the review. “The way these components are assembled determines how many photons can actually be collected and used.”
The review explains that light collection efficiency links the intrinsic light output of a scintillator with the measurable performance of the final detector. Even if a material produces many photons, the detector cannot fully benefit from this advantage unless those photons are efficiently extracted, transported and converted into electrical signals. This makes assembly design a critical step in detector development.

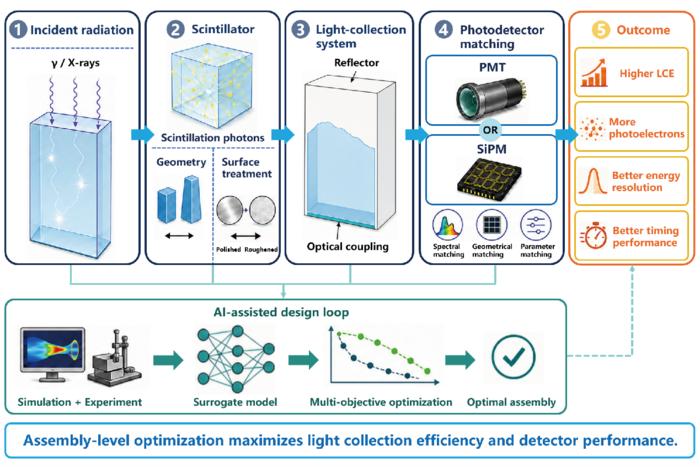

The authors summarize several assembly-level strategies for improving LCE. At the scintillator level, crystal geometry and surface treatment can change how photons travel inside the material. For example, changing the crystal shape or roughening selected surfaces can disrupt photon-trapping paths and increase the chance that light escapes toward the readout end. However, these strategies must be chosen carefully because methods that increase light output may also broaden photon arrival times, which can be unfavorable for fast-timing applications.
Reflective layers are another key part of the light collection system. Materials such as enhanced specular reflector films, PTFE, TiO₂ coatings and metallic reflectors can recycle photons that would otherwise escape from the scintillator. The review highlights that no single reflector is best for all detectors. Instead, reflector choice should consider emission wavelength, crystal geometry, surface finish, packing density, timing requirements and long-term stability.
Optical coupling media also play an important role. Small air gaps between the scintillator and photodetector can cause reflection losses because of refractive-index mismatch. Optical grease, optical cement or interface pads can fill these gaps and create a smoother light-transfer path. The review notes that coupling materials should not be selected only by refractive index; their transmittance, temperature stability, radiation tolerance and long-term reliability are also important.
For systems where the scintillator and photodetector cannot be directly matched in size or position, light guides can provide a flexible optical bridge. They can reduce geometric mismatch, improve uniformity, protect sensitive electronics from harsh environments, or enable compact array readout. At the same time, poor light-guide design may introduce extra interfaces, optical loss and timing spread, so geometry and material selection must be optimized together.
The review also discusses photodetector matching as the final step of the optical chain. The emission spectrum of the scintillator should overlap with the high-response region of the photodetector, whether a photomultiplier tube, microchannel-plate photomultiplier tube or silicon photomultiplier is used. Geometric matching is equally important: the sensitive area should cover the main outgoing light distribution without being unnecessarily large, which could increase noise, capacitance and cost.
Looking ahead, the authors propose that artificial intelligence could help accelerate detector assembly optimization. Modern scintillation detector design involves many coupled parameters, including crystal size, surface finish, reflector type, coupling-layer thickness, light-guide geometry and photodetector response. Exhaustively testing every combination through experiments or detailed Monte Carlo simulations can be time-consuming. AI-assisted surrogate models, trained using simulation and experimental data, may help identify promising designs more efficiently.
“AI should not replace physics-based simulation or experimental validation,” Hua notes. “But it can help researchers explore complex design spaces more quickly and find balanced solutions for light output, timing, uniformity, manufacturability and stability.”
The authors emphasize that future scintillation detectors will increasingly require compact integration, high count-rate capability, array readout and stable operation in complex environments. Under these conditions, performance optimization must move beyond individual components and toward coordinated design of the full optical chain.
This review provides a practical framework for that transition. By treating assembly optimization as a system-level problem, it offers guidance for translating the intrinsic advantages of scintillation materials into real detector performance.
This paper “Optimization of assembly for enhancing light collection efficiency in scintillation detectors” was published in AI & Materials .
Hua Y, Yang X, Chen J, Li X, Liu Y. Optimization of assembly for enhancing light collection efficiency in scintillation detectors. AI Materials . 2026(2):0007. https://doi.org/10.55092/aimat20260007 .
