Wearable electronics like fitness trackers and medical monitors are getting more powerful, but nonetheless, their tiny components generate heat that can't easily escape through the soft, rubbery materials that wrap them. This heat buildup slows down sensors, drains batteries faster, and can even become uncomfortably warm or unsafe on the skin.

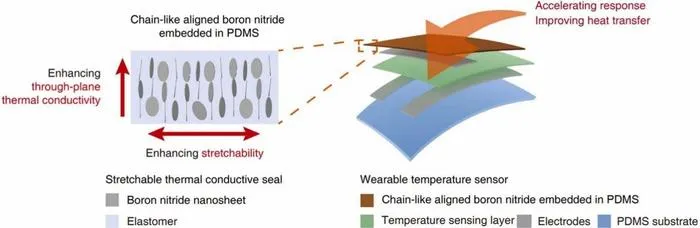

To solve this challenge, a team of researchers from Peking University developed a method to embed aligned filler network within the soft rubber material itself. They took tiny flakes of boron nitride—a ceramic that efficiently conducts heat along its surface—and coated them with magnetic nanoparticles. When mixed into liquid silicone rubber (PDMS), a magnetic field was used to align these magnetic flakes head-to-tail, like strings of microscopic beads. As the rubber cured, these aligned chains locked into place, creating direct vertical pathways—essentially "thermal highways"—for heat to travel through.
"The real challenge was getting these heat-conducting flakes to stand up straight inside the thick, viscous rubber before it solidified," explains lead author Yu-Qing Zheng. "Earlier methods that used short magnetic field treatment couldn't achieve full alignment."
The team's main innovation was applying the magnetic field continuously for up to 24 hours, which gave the flakes enough time to slowly rotate and link into continuous chains throughout the material.”
"The resulting composite material remains highly flexible and stretchable, with an elongation at break of 134%, yet it conducts heat through its thickness eight times more effectively than plain silicone rubber," says first author Yinghong Li.
Notably, this improvement in thermal performance was achieved using a relatively low filler content (20% by weight), which helps explain why the material retains its rubber-like stretchability.
Further, in practical tests the material demonstrated strong performance in two realistic applications.
"When placed between a small LED and a heat sink, it reduced the LED's operating temperature rise by 37% within five minutes," adds Li. "As a protective encapsulation layer for a wearable temperature sensor, it enabled the sensor to respond to temperature changes 54% faster compared to using standard rubber encapsulation."
These findings indicate that the composite represents a practical and effective upgrade, capable of making future wearable devices safer, more responsive, and more energy-efficient.
###
Contact the author: Yu-Qing Zheng,Beijing Advanced Innovation Center for Integrated Circuits, School of Integrated Circuits, Peking University, Beijing 100871, China. zhengyq@pku.edu.cn
The publisher KeAi was established by Elsevier and China Science Publishing & Media Ltd to unfold quality research globally. In 2013, our focus shifted to open access publishing. We now proudly publish more than 200 world-class, open access, English language journals, spanning all scientific disciplines. Many of these are titles we publish in partnership with prestigious societies and academic institutions, such as the National Natural Science Foundation of China (NSFC).
Wearable Electronics
Experimental study
Not applicable
Chain-like aligned boron nitride embedded in elastomer for thermal management in wearable electronics
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
