All around the world, scientists are striving towards next-generation energy technologies that can help us move away from fossil fuels. Using hydrogen as an energy carrier and clean energy source is perhaps one of the most promising solutions on the horizon. However, there is a major challenge to overcome before hydrogen economies become a reality: hydrogen gas is remarkably difficult to store and transport safely, which severely limits its applicability across many fields.
Against this backdrop, a research team from Tokyo Institute of Technology, Japan, and Tokyo University of Science, Japan has been working hard to reach an alternative solution to the hydrogen storage problem. Led by Associate Professor Kosuke Ono, they recently developed a novel compound—simply called 1a —that can adsorb at high density and desorb ammonia (NH 3 ) repeatedly, making it easy to recover ammonia. This gas is much more convenient to move around and can provide chemical energy just like hydrogen. Their findings have been published in the Journal of the American Chemical Society .
Compared to hydrogen, NH 3 does not require cold storage or extremely high pressure, which already saves a lot of energy. Moreover, existing industrial NH 3 infrastructure (Figure 1) could be readily repurposed for emerging NH 3 applications as an energy carrier. These are but a few of the advantages of NH 3 , as Ono explains: “NH 3 is not only a source of hydrogen but also considered a carbon-free energy carrier that produces N 2 and H 2 O upon combustion without producing CO 2 . Thus, the capture and recovery of NH 3 are highly desirable, both from an environmental perspective and with respect to efficient resource use.”

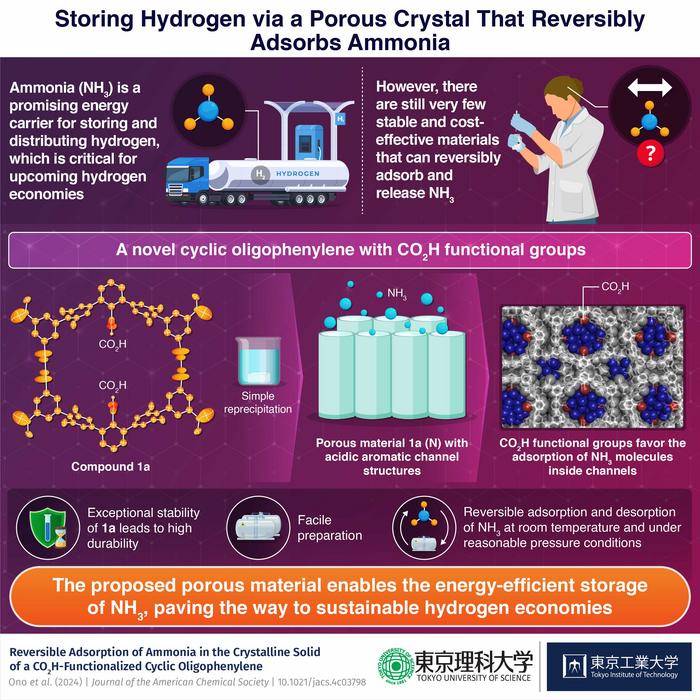

However, materials for NH 3 storage should be chemically stable while also supporting energy-efficient ways of adsorbing and releasing captured gas. To realize such a material, the researchers created a crystalline solid out of 1a molecules, which are cyclic oligophenylenes with CO 2 H functional groups in the inner portion of their ring-like structure. When forming this porous crystalline solid, referred to as 1a (N) , the 1a molecules organize themselves into bundles of parallel nanochannels. Thanks to the CO 2 H groups, the channels are acidic, which in turn helps adsorb NH 3 . Worth noting, the packing density for NH 3 in 1a (N) is 0.533 g/cm 3 at room temperature—almost as high as the density of pure liquid NH 3 !
Interestingly, simply lowering the pressure around 1a (N) is enough to make it release almost all the stored NH 3 , which addresses a main limitation of previously reported materials. “Crystalline 1a (N) is a stable NH 3 -adsorption material with the ability for repeated usage. The issue of residual NH 3 during desorption, which has often plagued conventional NH 3 -adsorption materials, can be resolved when using 1a (N) via a simple decompression operation,” remarks Ono. On top of these qualities, 1a (N) is also easy to prepare, which extends its applicability and cost-effectiveness.
Overall, this innovation could serve as a much-needed stepping stone towards efficient and scalable NH 3 storage, thereby paving the way to sustainable hydrogen economies. Moreover, by substituting the CO 2 H functional groups with different compounds, it may be possible to adsorb other types of highly reactive gases that typically pose practical challenges, such as HCl or Cl 2 .
Keep an eye out for similar developments in materials science using this strategy!
###
About Tokyo Institute of Technology
Tokyo Tech stands at the forefront of research and higher education as the leading university for science and technology in Japan. Tokyo Tech researchers excel in fields ranging from materials science to biology, computer science, and physics. Founded in 1881, Tokyo Tech hosts over 10,000 undergraduate and graduate students per year, who develop into scientific leaders and some of the most sought-after engineers in industry. Embodying the Japanese philosophy of “monotsukuri,” meaning “technical ingenuity and innovation,” the Tokyo Tech community strives to contribute to society through high-impact research.
https://www.titech.ac.jp/english/
Institute of Science Tokyo (Science Tokyo) will be established on October 1, 2024, following the merger between Tokyo Medical and Dental University (TMDU) and Tokyo Institute of Technology (Tokyo Tech), with the mission of “Advancing science and human wellbeing to create value for and with society.”
Journal of the American Chemical Society
Experimental study
Not applicable
Reversible Adsorption of Ammonia in the Crystalline Solid of a CO2H‐Functionalized Cyclic Oligophenylene
12-Jul-2024
