A small amount of dopamine can help a soft electrode overcome three common causes of failure at the same time, researchers have found. The dopamine-enhanced electrode remained stable in wet conditions, operated for longer and supported more effective electrically assisted delivery through skin in laboratory tests.

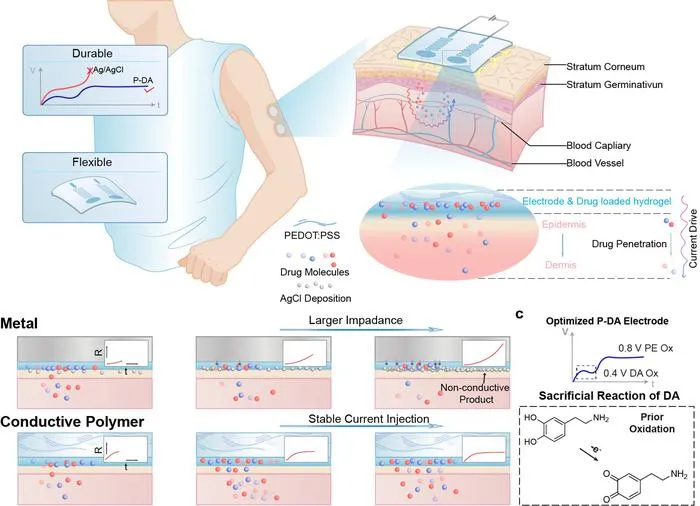

Wearable drug-delivery patches can use a mild electric current, a technique known as iontophoresis, to help medicines move across the skin's outer barrier. This could provide a needle-free way to deliver some treatments. However, the electrodes that drive the current can limit the performance of these devices. Conventional silver/silver chloride electrodes may develop a blocking layer during operation, while polymer electrodes can absorb water, swell and detach from their supporting surface.
To that end, researchers from The Chinese University of Hong Kong developed a new electrode by adding dopamine to PEDOT:PSS, a soft conductive polymer used in bioelectronic devices.
“Dopamine improves the electrode at several levels rather than only changing one property,” shares corresponding author Ni Zhao. “It helps organize the conductive polymer, protects it during electrical operation and strengthens the connection between the electrode and its supporting surface.”

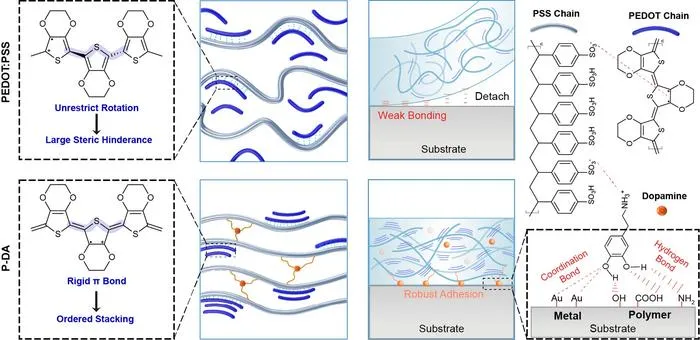

The researchers found that dopamine helped the polymer form a denser and more orderly structure. “During operation, dopamine reacted before the main conductive polymer, acting as a sacrificial material that delayed degradation,” adds Zhao. “Its adhesive chemical groups also helped prevent water-related swelling and peeling.”

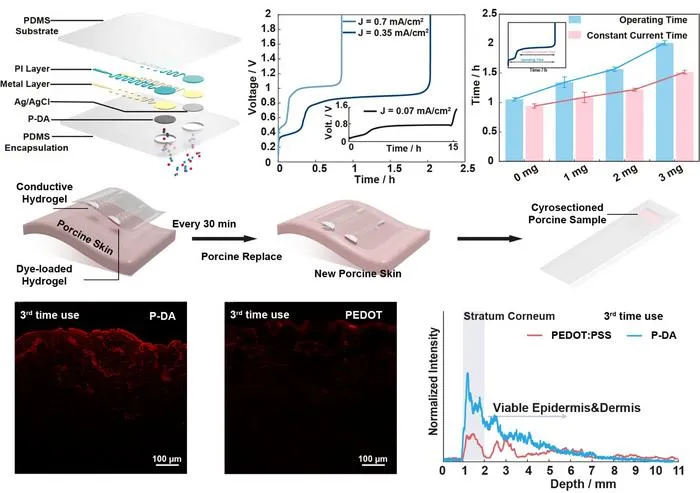

In durability tests, the dopamine-enhanced electrode operated for up to approximately 15 hours at a low current density. At higher current densities used for shorter delivery sessions, it continued operating for several hours. The researchers then tested the same electrode repeatedly on excised pig skin, replacing the skin sample every 30 minutes. “The electrode remained effective for up to 120 minutes,” says Zhao. “During the first use, its fluorescence signal was approximately twice that of unmodified PEDOT:PSS and four times that of a commercial silver/silver chloride electrode.”
“Additional diffusion-cell experiments detected the transport of both charged and neutral model compounds,” says first author Yixin Qi. “Cell tests showed no detectable cytotoxicity under the reported conditions, while a short forearm contact test showed no obvious visible irritation.”
Notably, the dopamine-enhanced electrode combines improved electrical stability, structural durability and wet-state adhesion in a simple polymer-based design, enabling more consistent transdermal delivery during repeated use.
“Going forward, the platform could be optimized for different drugs, current densities and personalized wearable delivery systems, as well as other skin-interfaced bioelectronic applications.,” adds Qi.
Nonetheless, the researchers noted that the current findings are mainly based on laboratory electrochemical tests and ex vivo porcine-skin experiments, while the human skin-contact assessment was preliminary and limited in duration. “Further studies should therefore evaluate long-term safety, drug-dose control and performance in diseased or damaged skin models, followed by well-designed clinical investigations,” says Zhao.
###
Contact the author:
Professor Ni Zhao
Department of Electronic Engineering
The Chinese University of Hong Kong
New Territories, Hong Kong
Email: nzhao@ee.cuhk.edu.hk
The publisher KeAi was established by Elsevier and China Science Publishing & Media Ltd to unfold quality research globally. In 2013, our focus shifted to open access publishing. We now proudly publish more than 200 world-class, open access, English language journals, spanning all scientific disciplines. Many of these are titles we publish in partnership with prestigious societies and academic institutions, such as the National Natural Science Foundation of China (NSFC).
Wearable Electronics
Experimental study
Animal tissue samples
Dopamine-enhanced polymeric electrodes for durable and efficient iontophoresis
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
