Wearable strain sensors have made significant advances in detecting both subtle physiological signals, such as heartbeats and pulses, and larger movements, such as elbow bending. However, maintaining their stability over prolonged use and under changing environmental conditions remains a major barrier to their practical application. To address this challenge, researchers developed a synergistic strategy that combines filler hybridisation with interfacial chemical bonding in styrene–butadiene rubber (SBR) and carbon nanotube (CNT) composites.

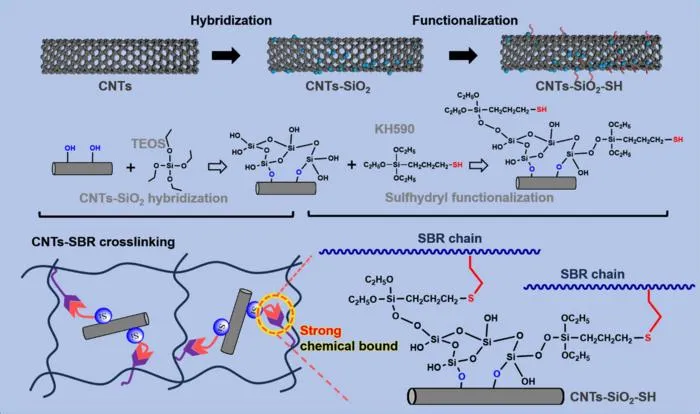

“By growing silica in situ on the CNTs and grafting active thiol groups onto their surfaces, we created a covalent co-vulcanisation network with the rubber matrix,” shares senior and co-corresponding author Kai Liu. “This network securely anchors the conductive pathways and helps prevent the secondary agglomeration of conductive fillers.”
Conventional wearable strain sensors suffer from performance degradation during long-term cyclic stretching because weak van der Waals forces cause conductive fillers to re-aggregate. “By replacing these relatively weak physical interactions with a robust, chemically crosslinked network, the new approach maintained stable sensing performance over 15,000 tensile cycles,” explains Liu.
The resulting sensors also operated reliably under harsh environmental conditions, including exposure to strong acids, strong bases and highly saline environments.
Notably, the team’s method employs a two-step functionalization process with TEOS and KH590, which unexpectedly streamlined filler dispersion and lowered the Payne effect.
“By moving beyond physical blending and establishing true chemical bonding between the filler and the elastomer matrix, we can ensure structural integrity under prolonged mechanical loading,” says co-corresponding author Yudong Liu.
“This multi-scale synergy bridges the gap between high sensitivity and exceptional durability, offering a practical solution for reliable health monitoring and high-risk industrial scenarios,” adds co-author Xiaokang Zhai.
###
Contact the author: Kai Liu, State Key Laboratory of Advanced Optical Polymer and Manufacturing Technology, Qingdao University of Science & Technology, Liukai@qust.edu.cn
The publisher KeAi was established by Elsevier and China Science Publishing & Media Ltd to unfold quality research globally. In 2013, our focus shifted to open access publishing. We now proudly publish more than 200 world-class, open access, English language journals, spanning all scientific disciplines. Many of these are titles we publish in partnership with prestigious societies and academic institutions, such as the National Natural Science Foundation of China (NSFC).
Wearable Electronics
Experimental study
Not applicable
Ultra-durable wearable strain sensors via synergistic filler hybridization and interfacial bonding
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
