The rapid growth of renewable energy technologies has driven a surge in global lithium demand, intensifying the need for efficient and scalable lithium extraction technologies. Specifically, low-quality brines, which are abundant and widely distributed, remain largely untapped despite their promising potential. Separating Li + from these brines is intrinsically difficult due to the comparable hydrated sizes of Li⁺ and Mg²⁺ ions, combined with the high Mg 2+ concentration and high Mg 2+ /Li + ratios.

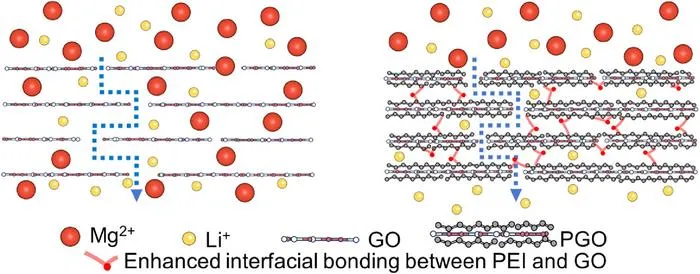

A research team led by Yang Su from Tsinghua University has addressed this challenge by developing a polyelectrolyte-intercalated graphene oxide membrane with a uniform and controllable interlayer spacing. Through mild thermal treatment, the membrane undergoes in situ crosslinking, which stabilizes the structure and enables precise tuning of the interlayer nanochannels. The resulting positively charged two-dimensional channels facilitate selective ion transport dominated by size-exclusion effects.
The findings were published in Nano Research on August 7, 2026.
The study demonstrates efficient Mg²⁺ rejection and effective Mg²⁺/Li⁺ separation under conditions of high Mg²⁺ concentration and high Mg²⁺/Li⁺ ratio, highlighting its applicability to realistic low-quality brine systems. The researchers also demonstrated the practical application of this membrane by simulating a multi-stage nanofiltration process on low-quality brines with high Mg 2+ concentration and Mg 2+ /Li + ratio. After three-stage filtration, the membrane rejected 99.53% of Mg 2+ , effectively upgrading the brine to a high-quality lithium source.
This work also reveals a “counter-ion controlled” ionic sieving mechanism. The team found that halide counter-ions, such as chloride (Cl - ), adsorb onto the charged channel walls, narrowing the effective interlayer gallery width and enabling size-exclusion-based separation. These findings are supported by both experimental observations and theoretical simulations. Furthermore, at high ionic concentrations, the team proposed a counter-ion exchange mechanism, in which Cl⁻ ions within the hydration shell of Mg²⁺ partially exchange with those adsorbed on the channel walls. This process reduces the effective hydrated size of Mg²⁺, allowing limited permeation and thereby explaining the moderate decline in ion rejection observed at high concentrations
Overall, this study provides new insights into the regulation of the mass transport channels through the ionic environment of the solutions and advances the understanding of ionic transport behaviors under nanoconfinement. Furthermore, it offers a new strategy and technical foundation for sustainable Li + /Mg 2+ separation and resource recovery from low-quality brines using membrane-based processes.
Contributors of this research include Xinyu Gong, Dingxin Xu, Miaofei Huang, Yuxin Li, Hanlu Jiang, Kuang Yu, Zhen Chen and Yang Su from the Institute of Materials Research, Tsinghua Shenzhen International Graduate School, Tsinghua University, China.
DOI Link:
https://doi.org/10.26599/NR.2026.94908964
