The enigmatic assembly pathway behind the refractile-body proteins may have finally been resolved, as reported by researchers from Science Tokyo. Using genetic engineering and several protein structural analysis techniques, they investigated how four different proteins work together to produce the correct nanoscale to microscale structure of these complex, pH-responsive protein machines. These findings could help establish new frameworks to engineer dynamic protein systems as biotechnological tools.
Some proteins can undergo drastic structural transformations in response to subtle changes in their surrounding environment. Refractile bodies (R-bodies), which are protein assemblies found in certain bacteria that are endosymbionts of Paramecium , are a prime example. Under relatively neutral pH conditions, the R-bodies remain tightly coiled, like a rolled-up ribbon. However, when the surrounding environment becomes acidic, they rapidly extend into a spiral structure about 50 times longer than their rolled form. This rapid extension happens within a second and can generate enough mechanical force to disrupt a cell membrane.
Although R-bodies were discovered more than 70 years ago, scientists still have limited understanding of how these protein machines are built. Type 51 R-bodies, one of the more studied varieties, are made from four proteins called RebA, RebB, RebC, and RebD, coded by a four-gene operon comprising r ebA, rebB, rebC, and rebD. RebA and RebB are thought to be the main structural components of the R-body architecture, but the roles of RebC and RebD remain unclear. How do these four proteins work together to create the complex, ordered nanoscale architecture seen in R-bodies?
A research team led by graduate student Koki Date, Assistant Professor Kosuke Kikuchi, and Professor Takafumi Ueno from the School of Life Science and Technology, Institute of Science Tokyo (Science Tokyo), Japan, set out to answer this question. Their study, published onlinin the journal Biomacromolecules on September 18, 2026, combines genetic engineering with advanced microscopy, fluorescence assays, X-ray scattering, and spectroscopy to shed light on the function of each protein involved in the assembly of a type 51 R-body.

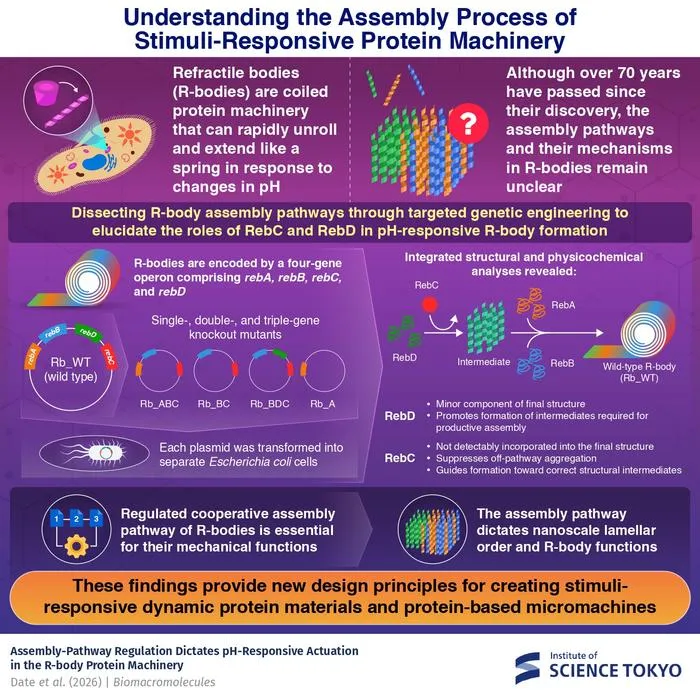

The researchers systematically examined what happens when each of the four reb genes are deleted from plasmids, both one at a time and in various combinations, using single-, double-, and triple-gene knockout mutants expressed in Escherichia coli . They then examined these mutant proteins in detail, comparing their shapes, internal structure, and protein composition with those of a fully functional wild-type R-body.
Interestingly, the results unveiled that RebD and RebC are critical in the formation of R-body architecture. “Our experiments revealed that RebA and RebB alone are insufficient to produce a functional, extensible R-body. Instead, the formation of the characteristic pH-responsive architecture depends on a regulated assembly pathway involving all four proteins,” explains Ueno. RebD turned out to be a minor but essential building block, guiding the early formation of an ordered, α-helix-rich structure. RebC, on the other hand, was not detectable in the finished R-body at all. Without it, however, the other proteins aggregated into clumps instead of an organized roll. When either protein was absent, the system preferentially formed disordered, β-sheet-rich aggregates instead of functional R-bodies.
Taken together, the findings highlight the importance of both the final architecture of R-bodies and the assembly pathway that produces them. By clarifying how these proteins assemble into an ordered and actuatable structure, this study provides useful insights for scientists engineering dynamic protein systems. “Our work provides valuable design principles for engineering stimuli-responsive protein materials and microscopic protein-based machines capable of sensing environmental changes and generating mechanical motion,” concludes Ueno.
***
About Institute of Science Tokyo (Science Tokyo)
Institute of Science Tokyo (Science Tokyo) was established on October 1, 2024, following the merger between Tokyo Medical and Dental University (TMDU) and Tokyo Institute of Technology (Tokyo Tech), with the mission of “Advancing science and human wellbeing to create value for and with society.”
Biomacromolecules
Experimental study
Cells
Assembly-Pathway Regulation Dictates pH-Responsive Actuation in the R-Body Protein Machinery
18-Sep-2026
The authors declare no conflict of interest.
