Large airport hubs make transfers between aircraft, high-speed rail, subways and maglev trains easier. But when hotels and passenger overnight rooms sit above or close to rail infrastructure, train-induced vibration must be predicted before construction and controlled through suitable track measures.

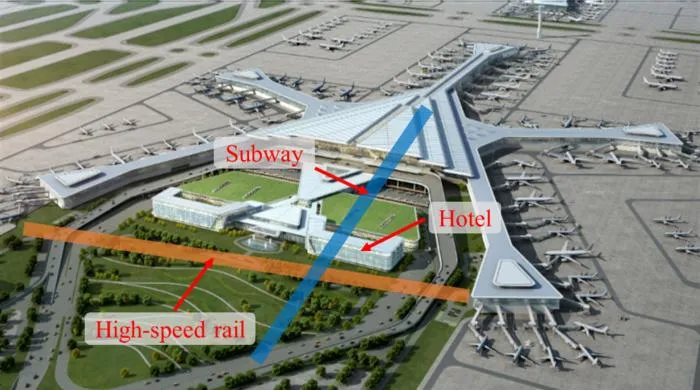

A study published in Journal of Railway Science and Technology examined passenger overnight accommodation planned near Changsha Huanghua Airport Terminal 3. The hotel is supported over a subway line by structural columns, while a high-speed railway line intersects the subway line nearby. To assess vibration transmitted through the track, station, building and soil, the researchers built a two-step simulation framework.
"First, a train-track coupled vibration model calculated the dynamic forces generated at rail fasteners as subway and high-speed railway trains passed over the track," shares lead author Lidong Wang of Changsha University of Science & Technology. "Those forces were then applied to a detailed finite-element model of the track, station, hotel and surrounding soil."
This allowed the team to compare floor and column responses and evaluate acceleration, maximum Z-vibration level and one-third-octave frequency-band vibration levels.
"Airport hubs are becoming more compact, so designers need to understand rail-induced vibration before hotels and other sensitive spaces are built," says corresponding Yan Han, who hails from the same university. "Our framework links the train-track forces to the building and soil, helping identify where limits may be exceeded and which mitigation measures are likely to work."
Under single-train operation, floor responses were stronger than those of structural columns at the same floor, and vibration acceleration decreased on higher floors. A subway train at 80 km/h or a high-speed railway train at 300 km/h could make floor vibration perceptible.
"For the maximum Z-vibration indicator, only one floor point exceeded the daytime limit when a high-speed train ran at 300 km/h, whereas 23 points—about 16%—exceeded the nighttime limit when a subway train ran at 80 km/h," says Wang. "Most floor points also exceeded one-third-octave limits, with subway-related exceedances concentrated around 40 Hz and high-speed railway exceedances spanning roughly 40–80 Hz."

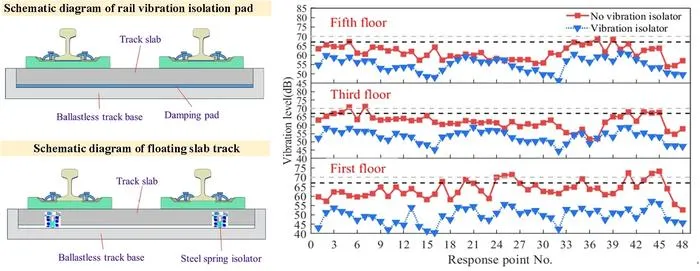

The team then tested a combined mitigation strategy: steel-spring floating slab track for the subway and vibration-damped track for the high-speed railway. "Under simultaneous operation of one subway train and one high-speed railway train, the measures kept floor acceleration below the human perception threshold and brought all evaluated vibration indicators within relevant standards," adds Han.
###
Contact the author: Yan Han, School of Civil and Environmental Engineering, Changsha University of Science & Technology, Changsha, Hunan, China, cehanyan@csust.edu.cn
The publisher KeAi was established by Elsevier and China Science Publishing & Media Ltd to unfold quality research globally. In 2013, our focus shifted to open access publishing. We now proudly publish more than 200 world-class, open access, English language journals, spanning all scientific disciplines. Many of these are titles we publish in partnership with prestigious societies and academic institutions, such as the National Natural Science Foundation of China (NSFC).
Vibration assessment and mitigation for an over-track building in a large-scale transportation hub induced by subway and high-speed railway trains
The authors declare the following financial interests/personal relationships which may be considered as potential competing interests: Wenbin Lu, Xianghong Yang, and Jiangying Wang are currently employed by Hunan No.6 Engineering Co.; Lidong Wang, Xinqiang Qing, Jingcheng Chen, and Ying Yang are currently employed by China Construction 5th Engineering Division Co.
