When cold water hits a scorching frying pan, it beads into trembling spheres that skate effortlessly on a pocket of their own steam, a phenomenon that normally chokes cooling systems in high-power microchips and nuclear reactors because trapped steam blocks heat escape. Yet moving liquids through these extreme-heat environments without mechanical pumps has long eluded engineers.
In the International Journal of Extreme Manufacturing , Prof. Jiale Yong at Xi'an Jiaotong University and his co-workers have flipped a notorious manufacturing flaw on its head: by intentionally misaligning ultrafast laser beams, they have carved microscopic ramps onto metal surfaces that harness that very steam cushion, turning chaotic boiling into a directional engine that propels droplets uphill and around curves without a single moving part.
Directing these levitating beads, known as Leidenfrost droplets, has traditionally been stalled by stubborn multidisciplinary barriers. Standard silicon microfabrication requires cleanrooms and brittle, expensive materials that crack under rapid heating and cooling cycles. Past attempts with machined metal ratchets pushed droplets exclusively in straight, inflexible lines and barely reached modest speeds. Meanwhile, laser machinists routinely fight an uphill battle to eliminate optical aberrations, the accidental lens misalignments and warped laser spots that deform precision patterns.

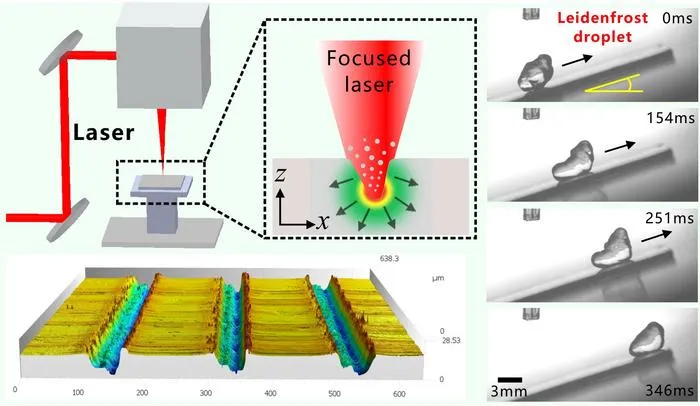

Rather than fixing those optical defects, the researchers leaned directly into them. By deliberately nudging the focusing lenses out of alignment, they created a laser beam whose hottest energy point was skewed toward one edge. Carving metal with this off-center pulse gouged asymmetric, ski-jump-shaped microgrooves in a single sweep.
When a liquid droplet drops onto this scalding texture, it hovers over an uneven valley that acts like a microscopic nozzle. Escaping vapor shoots out through the gentler side of the trench, catching the droplet's underside with an unbalanced frictional drag or viscous shear force that kicks the liquid forward in one uniform direction.
The resulting push shatters previous limits for heat-driven fluid transport. Droplets surge forward at top speeds of 400 mm per second, covering roughly forty times their own width in a single blink. Even more striking, the vapor engine delivers enough upward thrust to climb an 18° slope, conquering an incline more than twice as steep as any previously recorded for self-propelled Leidenfrost fluids. By etching a second set of grooves across the first at an angle, the team successfully steered drops along smooth, curved trajectories, freeing droplet transport from rigid straight-line channels.
Because ultrafast laser pulses strip away atoms before heat can spread to adjacent zones, the texturing method works across everyday industrial materials including aluminum, stainless steel, titanium, magnesium, and heat-resistant ceramics. It also accepts a wide spectrum of liquids, from water and ethanol to industrial solvents. Since different liquids boil and propel at distinct temperatures, the grooves can double as unpowered sorting tables, guiding chemical mixtures down separate paths based purely on their boiling points.
For industrial manufacturers, this passive transport unlocks targeted heat management for sealed systems where traditional pumps and wiring melt or corrode. Scalding hotspots in electronics or industrial machinery can now passively lure coolant straight to where heat builds up most. Real-world adoption now rests on testing how well these delicate microscopic ridges withstand surface oxidation, mineral scale, and physical wear across thousands of hours of relentless industrial heat.
International Journal of Extreme Manufacturing (IJEM, IF: 25.1 ) is devoted to publishing articles of the highest quality and significance to pushing the limits of scales, precision, performance and environments in manufacturing.
Visit our webpage , like us on Facebook , and follow us on Twitter and LinkedIn .
International Journal of Extreme Manufacturing
Femtosecond laser asymmetric microgrooving for the ultrastrong directional propulsion of Leidenfrost droplets
14-Sep-2026
